IHW15N120E1XKSA1 - Infineon

Description: INFINEON - IHW15N120E1XKSA1 - IGBT, SINGLE, 1.2KV, 30A, TO-247

Download IHW15N120E1XKSA1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

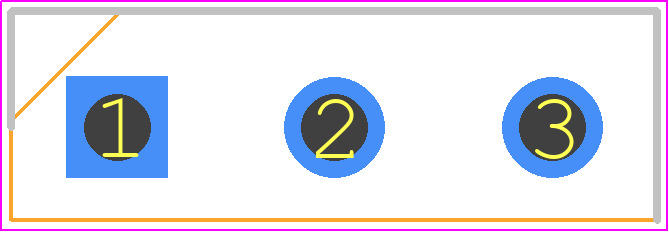

IHW15N120E1XKSA1 - Infineon PCB footprint - Transistor Outline, Vertical - Transistor Outline, Vertical - PG-TO247-3_2021
click to zoom
3D Models
IHW15N120E1XKSA1 - Infineon  - 3D model - Transistor Outline, Vertical - PG-TO247-3_2021
click to zoom

IHW15N120E1XKSA1 Details

  • Manufacturer Part Number:

    IHW15N120E1XKSA1

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    19 Weeks

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    0

  • Collector Current-Max (IC):

    30 A

  • Collector-Emitter Voltage-Max:

    1200 V

  • Configuration:

    SINGLE WITH BUILT-IN DIODE

  • JEDEC-95 Code:

    TO-247

  • JESD-30 Code:

    R-PSFM-T3

  • JESD-609 Code:

    e3

  • Number of Elements:

    1

  • Number of Terminals:

    3

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLANGE MOUNT

  • Polarity/Channel Type:

    N-CHANNEL

  • Surface Mount:

    NO

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Position:

    SINGLE

  • Transistor Application:

    POWER CONTROL

  • Transistor Element Material:

    SILICON

  • Turn-off Time-Nom (toff):

    1450 ns

IHW15N120E1XKSA1 Frequently Asked Questions (FAQs)

  • The maximum junction temperature for the IHW15N120E1XKSA1 is 175°C, as specified in the datasheet. However, it's recommended to operate the device at a lower temperature to ensure reliability and longevity.
  • Proper cooling is crucial for the IHW15N120E1XKSA1. Ensure good thermal contact between the device and the heat sink, and use a thermal interface material if necessary. Also, consider the airflow and thermal design of the system to prevent hotspots.
  • The recommended gate resistor value for the IHW15N120E1XKSA1 depends on the specific application and switching frequency. As a general guideline, a gate resistor value between 10 ohms and 100 ohms is suitable for most applications. However, it's recommended to consult the application note or contact Infineon support for specific guidance.
  • The IHW15N120E1XKSA1 is an industrial-grade device, but it's not specifically designed for high-reliability or automotive applications. If you need a device for such applications, consider using a device with a higher qualification level, such as the AEC-Q101 or ISO 26262 standards.
  • To protect the IHW15N120E1XKSA1 from overvoltage and overcurrent, consider using a voltage clamp or a surge protection device. Additionally, implement overcurrent protection using a current sense resistor and a comparator or a dedicated overcurrent protection IC.
