IIM-42652 - TDK

Description: IMU (Inertial Measurement Unit), 6-Axis, Accelerometer, Gyroscope

Download IIM-42652 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

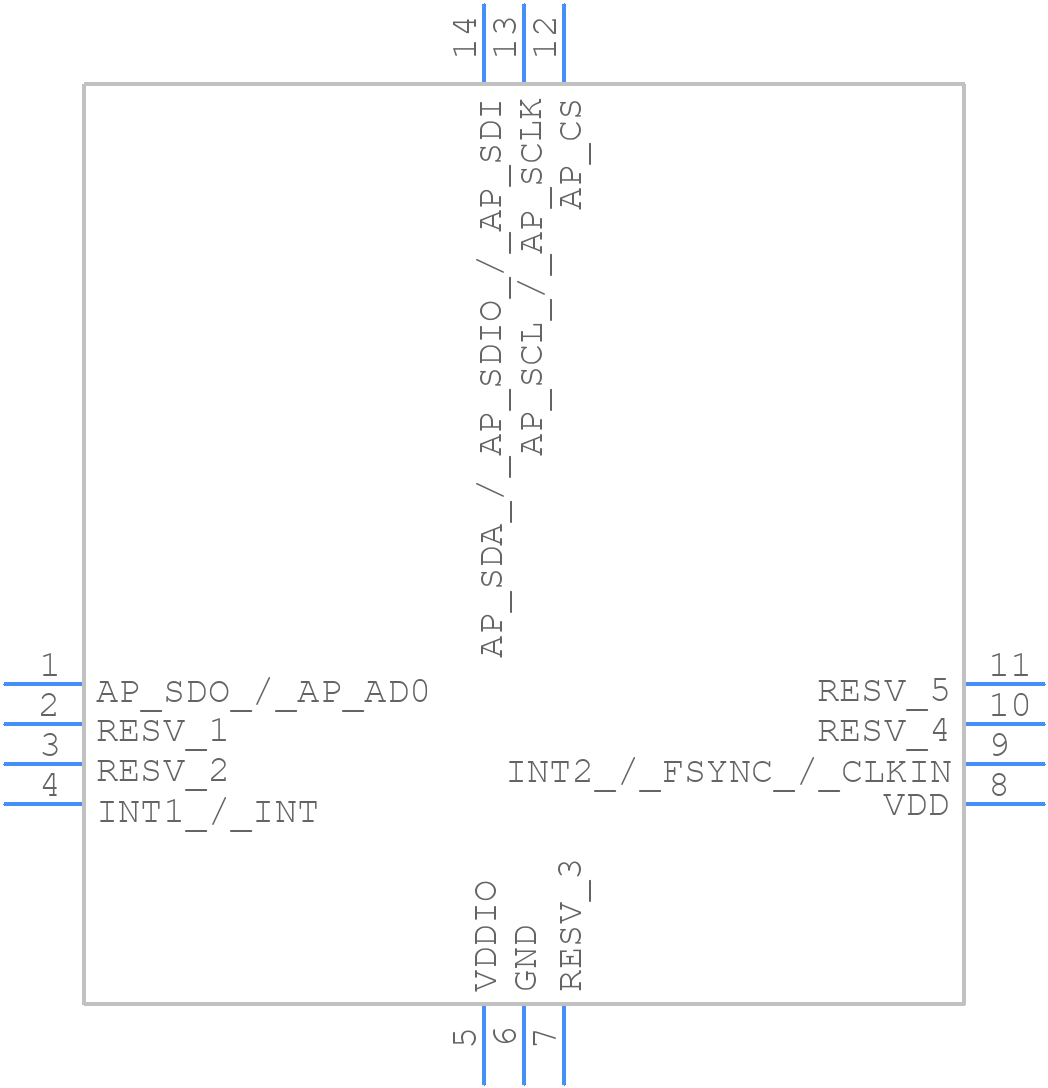

IIM-42652 - TDK - PCB symbol
click to zoom
PCB Footprints
IIM-42652 - TDK PCB footprint - Other - Other - 2.5 mm x 3.0 mm x 0.91 mm LGA
click to zoom
3D Models
IIM-42652 - TDK - 3D model - Other - 2.5 mm x 3.0 mm x 0.91 mm LGA
click to zoom

IIM-42652 Details

  • Manufacturer Part Number:

    IIM-42652

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • Manufacturer:

    TDK Corporation

  • YTEOL:

    5

  • Body Breadth:

    2.5 mm

  • Body Height:

    0.8 mm

  • Body Length or Diameter:

    3 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    OPEN-DRAIN

  • Output Range:

    0.18-1.62V

  • Output Type:

    DIGITAL VOLTAGE

  • Package Body Material:

    UNSPECIFIED

  • Package Equivalence Code:

    LCC14,.1X.12,20

  • Package Shape/Style:

    RECTANGULAR

  • Sensors/Transducers Type:

    ACCELEROMETER/GYROSCOPE

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    1.71 V

  • Surface Mount:

    YES

  • Technology:

    CMOS
