IIS2DLPCTR Frequently Asked Questions (FAQs)

• What is the recommended power-on sequence for the IIS2DLPCTR?
  The recommended power-on sequence is to power up the VDDIO pin first, followed by the VDD pin. This ensures that the internal voltage regulators are properly initialized.
• How do I configure the IIS2DLPCTR for different acceleration ranges?
  The IIS2DLPCTR has a built-in accelerometer that can be configured for different acceleration ranges by setting the FS_SEL pins. For example, setting FS_SEL to 0 selects a ±2g range, while setting FS_SEL to 1 selects a ±4g range.

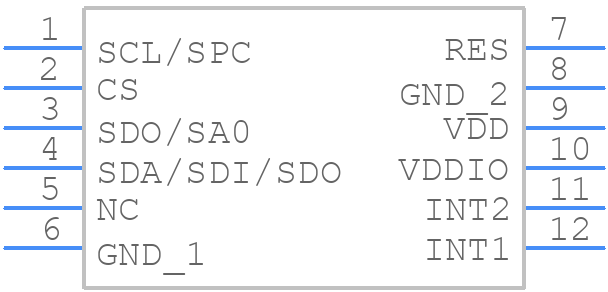

• What is the purpose of the INT1 and INT2 pins on the IIS2DLPCTR?
  The INT1 and INT2 pins are interrupt pins that can be configured to generate interrupts based on specific events, such as data ready, FIFO threshold, or motion detection. These pins can be connected to a microcontroller to wake it up from sleep mode or to trigger specific actions.
• How do I interface the IIS2DLPCTR with a microcontroller?
  The IIS2DLPCTR can be interfaced with a microcontroller using the SPI or I2C interface. The device can be configured to operate in either 3-wire or 4-wire SPI mode, or in I2C mode. The microcontroller can read data from the IIS2DLPCTR by sending commands and reading the response.
• What is the purpose of the FIFO buffer in the IIS2DLPCTR?
  The FIFO buffer in the IIS2DLPCTR is a 32-level first-in-first-out buffer that stores acceleration data. The FIFO buffer allows the device to store data even when the microcontroller is not actively reading data, reducing the likelihood of data loss.
