Part Image

IIS328DQ - STMicroelectronics

Description: Accelerometers 3-axis accelerometer for industrial applications, SPI/I2C digital output, ultra low-power high performance

Download IIS328DQ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

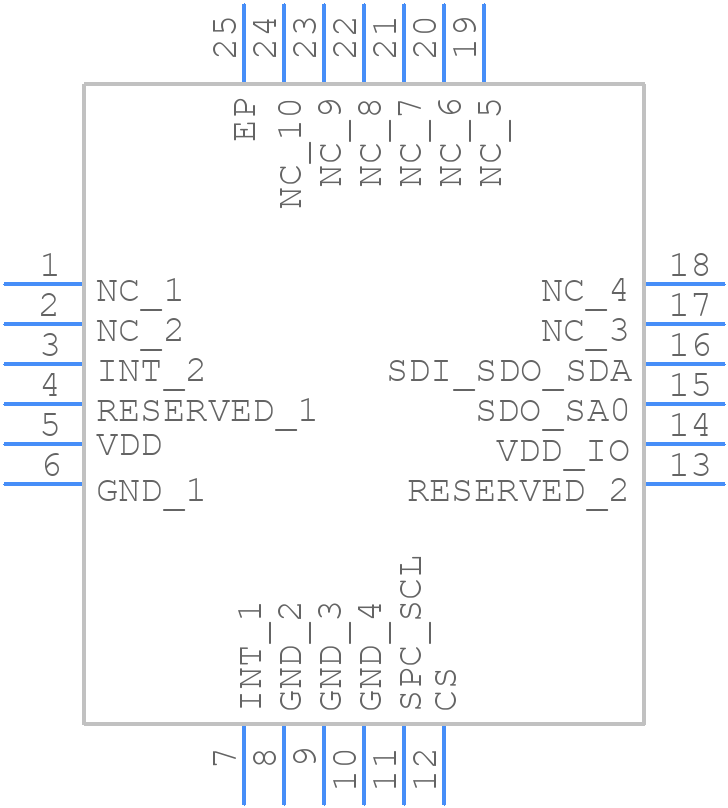

IIS328DQ - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
IIS328DQ - STMicroelectronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - QFNQFPN 4x4x1.8 24L
click to zoom
3D Models
IIS328DQ - STMicroelectronics - 3D model - Quad Flat No-Lead - QFNQFPN 4x4x1.8 24L
click to zoom

IIS328DQ Details

  • Manufacturer Part Number:

    IIS328DQ

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    4 X 4 MM, 1.80 MM HEIGHT, GREEN, QFN-24

  • ECCN Code:

    EAR99

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    S-XQCC-N24

  • Length:

    4 mm

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HQCCN

  • Package Equivalence Code:

    LCC24,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.85 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2.16 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    4 mm

IIS328DQ Frequently Asked Questions (FAQs)

  • The recommended power-on sequence is to power up the VDDIO pin first, followed by the VDD pin. This ensures that the internal voltage regulators are properly initialized.
  • To configure the IIS328DQ for low-power mode, set the LPEN pin high and ensure that the ODR (Output Data Rate) is set to a low value. Additionally, disable any unnecessary features and reduce the accelerometer's bandwidth.
  • The IIS328DQ can measure accelerations up to ±16g, but it's recommended to operate within the ±8g range for optimal performance and accuracy.
  • Calibration involves applying a known acceleration to the sensor and adjusting the offset and sensitivity registers accordingly. The datasheet provides a detailed calibration procedure, and STMicroelectronics also offers a calibration tool.
  • The INT1 and INT2 pins are interrupt pins that can be configured to trigger on specific events, such as exceeding a certain acceleration threshold or detecting a free-fall event. These pins can be used to wake up a microcontroller or trigger other actions.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

IIS328DQ Overview

Use the download button to access the IIS328DQ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like IIS32, or try a keyword search, such as Other Signal Circuits

About STMicroelectronics

STMicroelectronics (ST) is a global semiconductor company that designs, manufactures, and markets a broad range of integrated circuits (ICs), discrete devices, and other electronic components. STMicroelectronics offers a diverse portfolio of semiconductor products covering a wide range of applications and industries. Their product categories include microcontrollers, analog and mixed-signal ICs, MEMS (Micro-Electro-Mechanical Systems) sensors, power management ICs, RF (Radio Frequency) transceivers, aut
