IKCM20L60GAXKMA1 - Infineon

Description: Motor / Motion / Ignition Controllers & Drivers CIPOS MINI

Download IKCM20L60GAXKMA1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

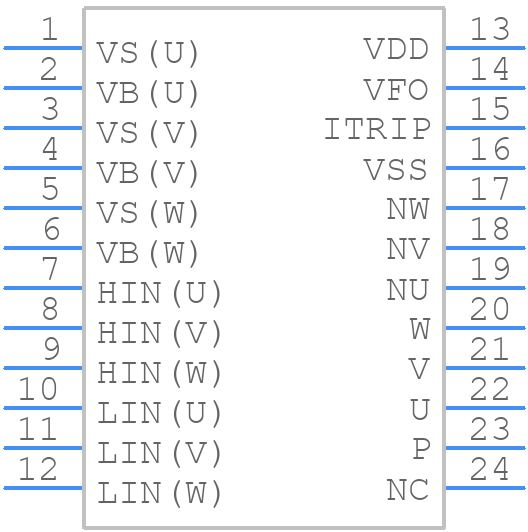

IKCM20L60GAXKMA1 - Infineon - PCB symbol
click to zoom
PCB Footprints

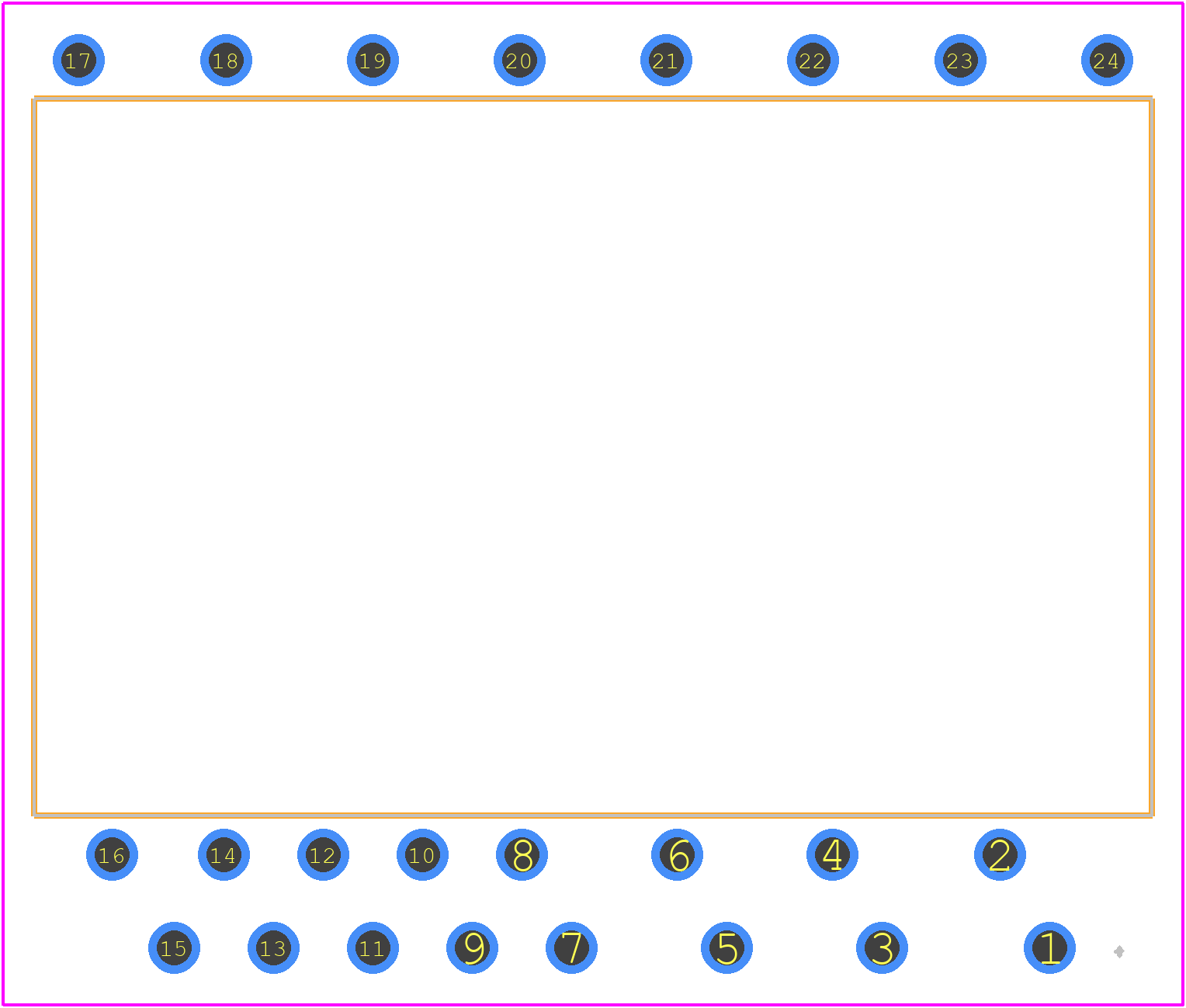

IKCM20L60GAXKMA1 - Infineon PCB footprint - Other - Other - DIP 36x21D
click to zoom
3D Models
IKCM20L60GAXKMA1 - Infineon - 3D model - Other - DIP 36x21D
click to zoom

IKCM20L60GAXKMA1 Details

  • Manufacturer Part Number:

    IKCM20L60GAXKMA1

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DIP-24

  • Country Of Origin:

    Austria, Malaysia, South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    24 Weeks

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    6

  • Analog IC - Other Type:

    AC MOTOR CONTROLLER

  • JESD-30 Code:

    R-PDMA-T24

  • Length:

    36 mm

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    40 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Seated Height-Max:

    5.6 mm

  • Supply Voltage-Max (Vsup):

    18.5 V

  • Supply Voltage-Min (Vsup):

    14.5 V

  • Supply Voltage-Nom (Vsup):

    16 V

  • Surface Mount:

    NO

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Position:

    DUAL

  • Width:

    21 mm

IKCM20L60GAXKMA1 Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the IKCM20L60GAXKMA1 is -40°C to 150°C.
  • The recommended PCB layout for the IKCM20L60GAXKMA1 involves using a multi-layer PCB with a solid ground plane, placing decoupling capacitors close to the device, and using shielded cables for connections.
  • To ensure reliability, it is recommended to follow the recommended operating conditions, use a suitable thermal interface material, and implement a thermal management system to keep the device within the recommended temperature range.
  • The recommended soldering conditions for the IKCM20L60GAXKMA1 involve using a soldering iron with a temperature of 250°C to 260°C, and a soldering time of 3 to 5 seconds.
  • To troubleshoot issues with the IKCM20L60GAXKMA1, check the device's operating conditions, verify the PCB layout and thermal management, and use diagnostic tools such as oscilloscopes and thermal imaging cameras to identify the root cause of the issue.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

IKCM20L60GAXKMA1 Overview

Use the download button to access the IKCM20L60GAXKMA1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like IKCM2, or try a keyword search, such as Motion Control Electronics
