IKCM30F60GAXKMA1 - Infineon

Description: Power Driver Module IGBT 3 Phase 600 V 30 A 24-PowerDIP Module (1.028", 26.10mm)

Download IKCM30F60GAXKMA1 Model
Schematic

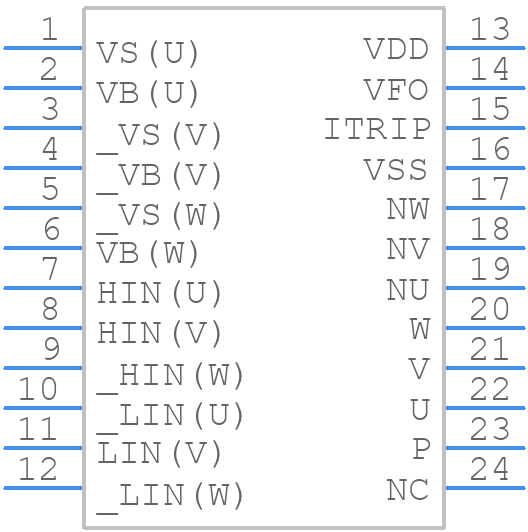

symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

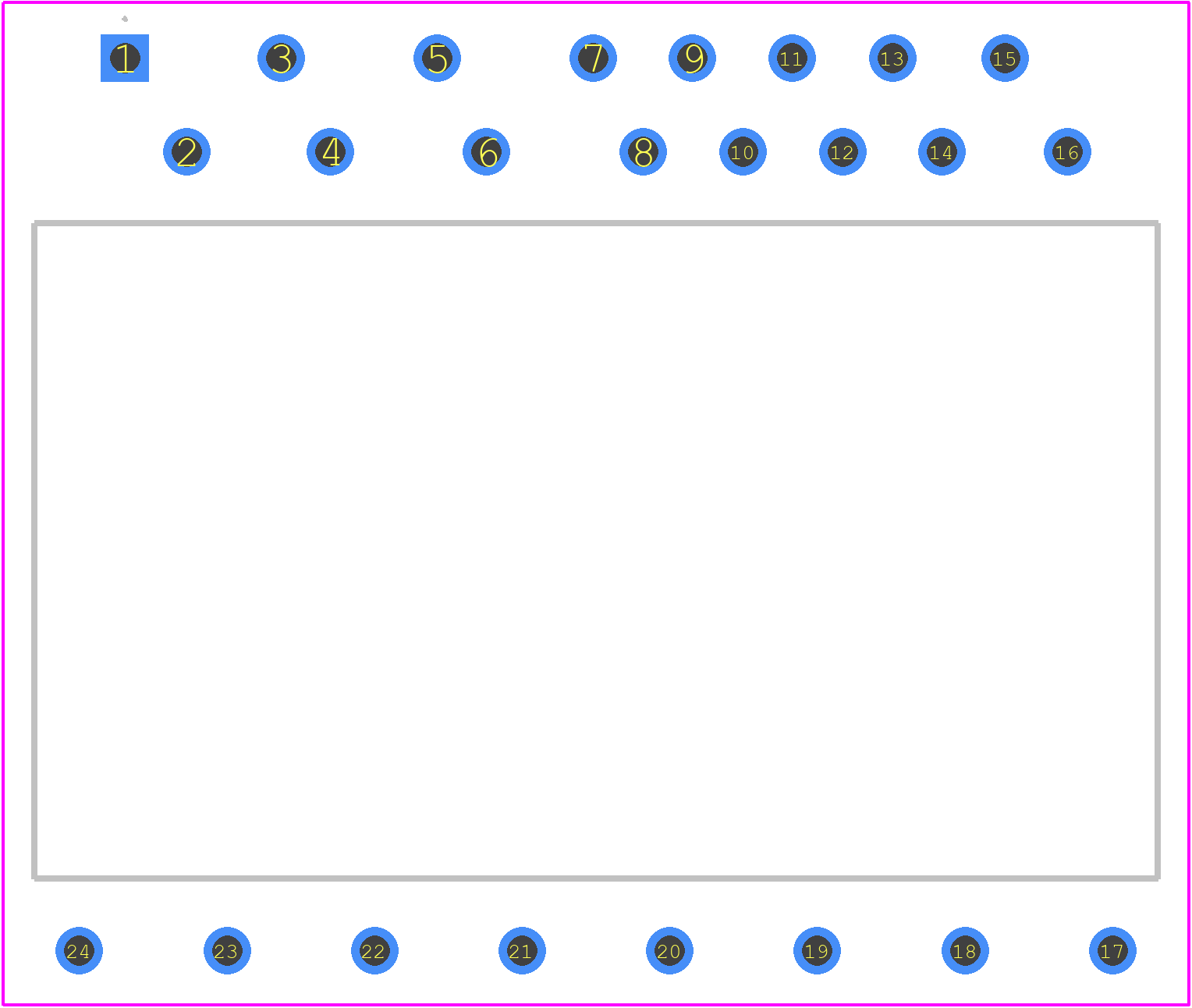

IKCM30F60GAXKMA1 - Infineon PCB footprint - Other - Other -  DIP 36x21
click to zoom
3D Models
IKCM30F60GAXKMA1 - Infineon  - 3D model - Other -  DIP 36x21
click to zoom

IKCM30F60GAXKMA1 Details

  • Manufacturer Part Number:

    IKCM30F60GAXKMA1

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DIP-24

  • Country Of Origin:

    Malaysia, South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    24 Weeks

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    6

  • Analog IC - Other Type:

    AC MOTOR CONTROLLER

  • JESD-30 Code:

    R-XXFM-T24

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    60 A

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    DMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Supply Voltage-Max (Vsup):

    18.5 V

  • Supply Voltage-Min (Vsup):

    14.5 V

  • Supply Voltage-Nom (Vsup):

    16 V

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Position:

    DUAL

IKCM30F60GAXKMA1 Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the IKCM30F60GAXKMA1 is -40°C to 150°C.
  • Proper thermal management can be achieved by ensuring good heat sink contact, using thermal interface materials, and maintaining a clean and dust-free environment.
  • The recommended gate resistance value for the IKCM30F60GAXKMA1 is between 10 ohms and 100 ohms.
  • Yes, the IKCM30F60GAXKMA1 can be used in a parallel configuration, but it's essential to ensure that the modules are matched and the gate drive circuits are synchronized.
  • The maximum allowable voltage transient for the IKCM30F60GAXKMA1 is 120% of the maximum rated voltage.
