IKCM30F60GDXKMA1 - Infineon

Description: Motor / Motion / Ignition Controllers & Drivers

Download IKCM30F60GDXKMA1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

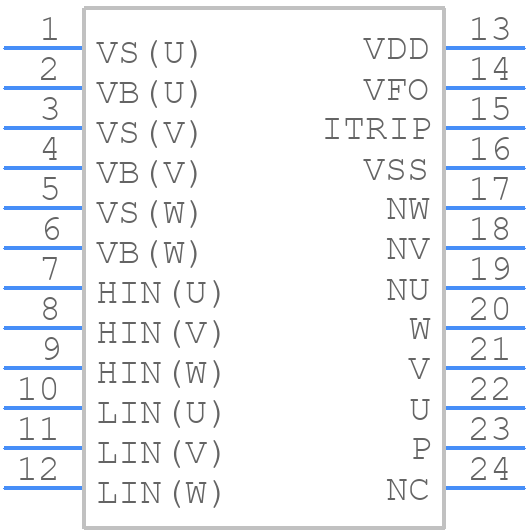

Symbol
IKCM30F60GDXKMA1 - Infineon - PCB symbol
click to zoom

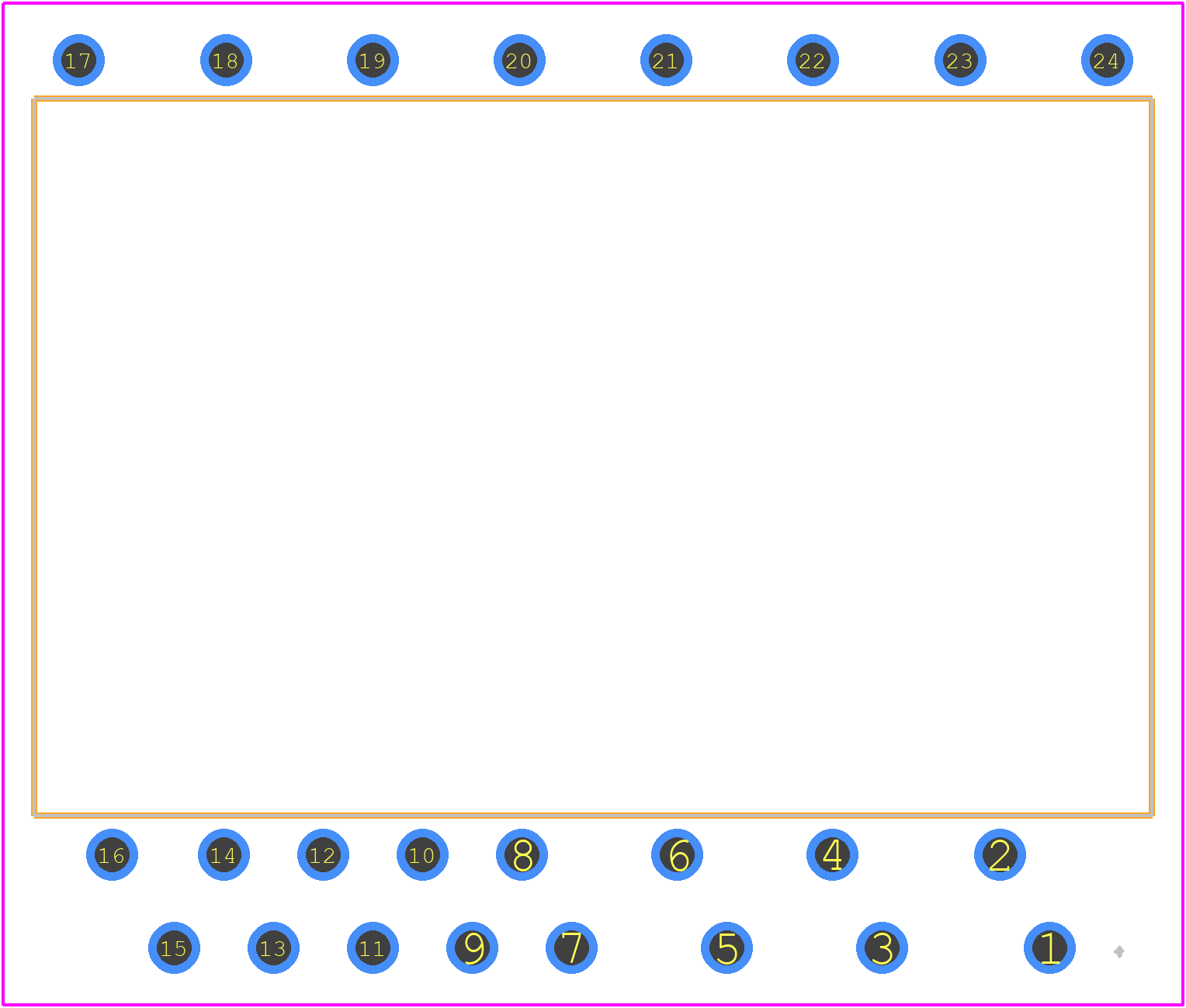

PCB Footprints
IKCM30F60GDXKMA1 - Infineon PCB footprint - Other - Other - DIP 36x21D
click to zoom
3D Models
IKCM30F60GDXKMA1 - Infineon - 3D model - Other - DIP 36x21D
click to zoom

IKCM30F60GDXKMA1 Details

  • Manufacturer Part Number:

    IKCM30F60GDXKMA1

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DIP-24

  • Country Of Origin:

    Malaysia, South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    6

  • Analog IC - Other Type:

    AC MOTOR CONTROLLER

  • JESD-30 Code:

    R-PDMA-T24

  • Length:

    36 mm

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    60 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Seated Height-Max:

    5.6 mm

  • Supply Voltage-Max (Vsup):

    18.5 V

  • Supply Voltage-Min (Vsup):

    14.5 V

  • Supply Voltage-Nom (Vsup):

    16 V

  • Surface Mount:

    NO

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Position:

    DUAL

  • Width:

    21 mm

IKCM30F60GDXKMA1 Frequently Asked Questions (FAQs)

  • The maximum allowed overcurrent for the IKCM30F60GDXKMA1 is 2 times the nominal current (IC) for a maximum of 10ms, according to the datasheet.
  • Proper thermal management can be achieved by ensuring good heat sink contact, using a thermal interface material, and maintaining a maximum junction temperature (Tj) of 150°C.
  • The recommended gate resistor value for the IKCM30F60GDXKMA1 is between 10 ohms and 20 ohms, depending on the specific application and switching frequency.
  • Yes, the IKCM30F60GDXKMA1 can be used in a parallel configuration, but it requires careful consideration of the current sharing and thermal management to ensure reliable operation.
  • The maximum allowed voltage imbalance between the DC links for the IKCM30F60GDXKMA1 is ±10% of the nominal DC link voltage, according to the datasheet.
