IKCS12F60B2A - Infineon

Description: Control Integrated POwer System (CIPOS™)

Download IKCS12F60B2A Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

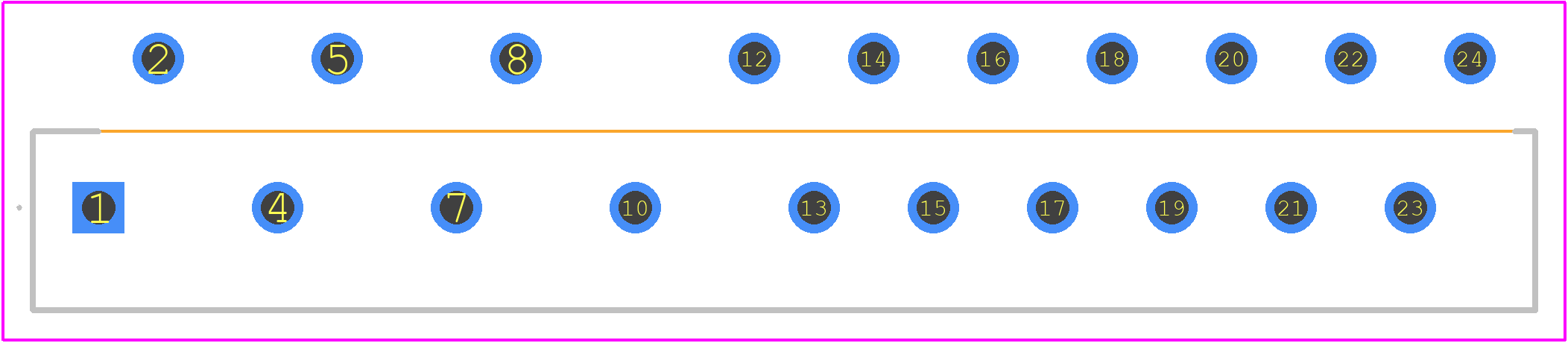

IKCS12F60B2A - Infineon PCB footprint - Other - Other - IKCS12F60B2A-1
click to zoom
3D Models
IKCS12F60B2A - Infineon  - 3D model - Other - IKCS12F60B2A-1
click to zoom

IKCS12F60B2A Details

  • Manufacturer Part Number:

    IKCS12F60B2A

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SIP

  • Package Description:

    GREEN, PLASTIC, MSIP-24/20

  • Pin Count:

    24/20

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    0

  • Analog IC - Other Type:

    AC MOTOR CONTROLLER

  • JESD-30 Code:

    R-PZFM-T20

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Output Current-Max:

    18 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    ZFM

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLANGE MOUNT

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Qualification Status:

    Not Qualified

  • Supply Voltage-Max (Vsup):

    17.5 V

  • Supply Voltage-Min (Vsup):

    12.5 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    NO

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Position:

    ZIG-ZAG

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

IKCS12F60B2A Frequently Asked Questions (FAQs)

  • Infineon provides a recommended PCB layout in the application note AN2014-03, which includes guidelines for thermal vias, copper thickness, and component placement to minimize thermal resistance and ensure reliable operation.
  • The selection of a suitable gate driver depends on the specific application requirements, such as voltage, current, and switching frequency. Infineon recommends using a gate driver with a minimum output current of 2A and a voltage rating of 15V to ensure reliable operation. The AN2014-04 application note provides more detailed guidance on gate driver selection.
  • The IKCS12F60B2A has a maximum allowed overcurrent of 2.5 times the nominal current (Ic) for a duration of 10ms, and a maximum allowed overvoltage of 1.5 times the nominal voltage (Vce) for a duration of 10ms. However, it is recommended to design the system to operate within the specified ratings to ensure reliable operation and prevent damage to the module.
  • To ensure EMC, it is recommended to follow the guidelines in the Infineon application note AN2014-05, which includes recommendations for PCB layout, component selection, and shielding to minimize electromagnetic interference (EMI) and ensure compliance with relevant standards.
  • For high-power applications, a forced air cooling system or a liquid cooling system is recommended to ensure reliable operation and prevent overheating. The cooling system should be designed to maintain a maximum junction temperature of 150°C, and the thermal interface material should have a thermal resistance of less than 0.1 Kcm²/W.
