IKCS22F60F2C - Infineon

Description: CIPOS™ Control Integrated POwer System Single In-Line Intelligent Power Module 3Φ-bridge 600V / 22A @ 25°C

Download IKCS22F60F2C Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

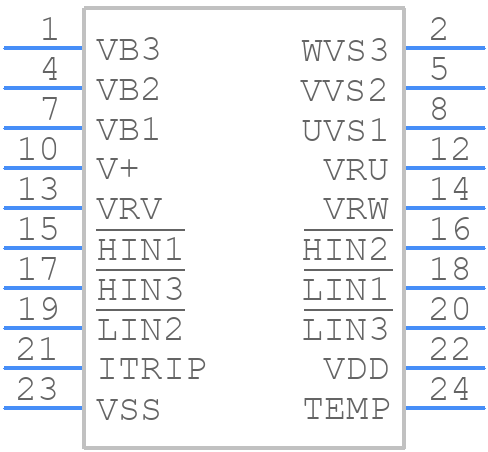

Symbol
IKCS22F60F2C - Infineon - PCB symbol
click to zoom

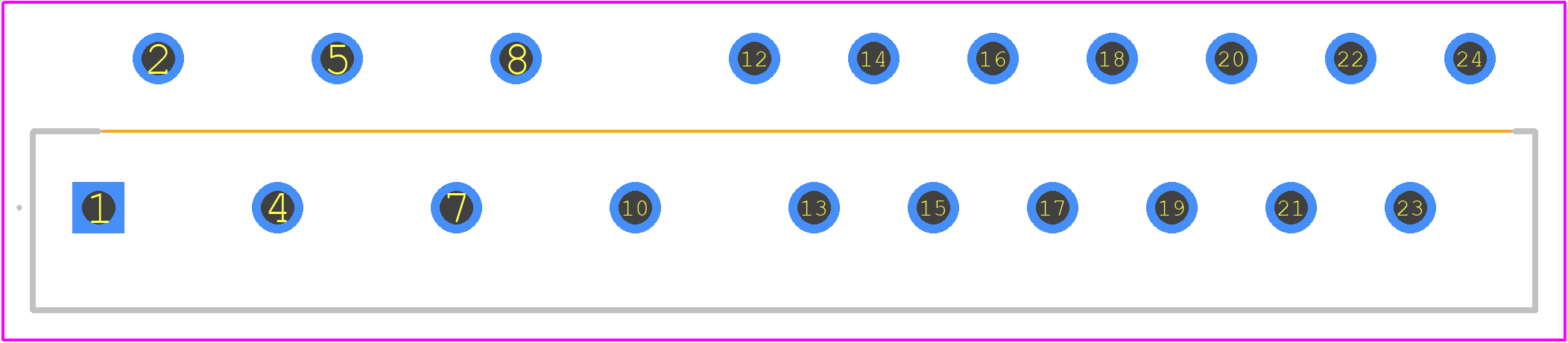

PCB Footprints
IKCS22F60F2C - Infineon PCB footprint - Other - Other - IKCS22F60F2C-4
click to zoom
3D Models
IKCS22F60F2C - Infineon - 3D model - Other - IKCS22F60F2C-4
click to zoom

IKCS22F60F2C Details

  • Manufacturer Part Number:

    IKCS22F60F2C

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SIP

  • Package Description:

    GREEN, PLASTIC, MSIP-24/20

  • Pin Count:

    24/20

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    0

  • Analog IC - Other Type:

    AC MOTOR CONTROLLER

  • JESD-30 Code:

    R-PZFM-T20

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Output Current-Max:

    45 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    ZFM

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLANGE MOUNT

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Qualification Status:

    Not Qualified

  • Supply Voltage-Max (Vsup):

    17.5 V

  • Supply Voltage-Min (Vsup):

    12.5 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    NO

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Position:

    ZIG-ZAG

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

IKCS22F60F2C Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the IKCS22F60F2C is -40°C to 150°C.
  • To ensure reliability, it's essential to follow the recommended thermal management guidelines, such as using a heat sink, and ensuring good airflow around the device.
  • The recommended gate drive voltage for the IKCS22F60F2C is between 10V and 15V, with a maximum voltage of 20V.
  • To protect the IKCS22F60F2C from overvoltage and undervoltage conditions, use a voltage regulator or a voltage supervisor to ensure the input voltage remains within the recommended range.
  • The maximum allowed current for the IKCS22F60F2C is 22A, but this can be limited by the application's thermal design and the device's thermal resistance.
