IKQ50N120CH3XKSA1 - Infineon

Description: IGBT Transistors IGBT PRODUCTS

Download IKQ50N120CH3XKSA1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
IKQ50N120CH3XKSA1 - Infineon - PCB symbol
click to zoom
PCB Footprints

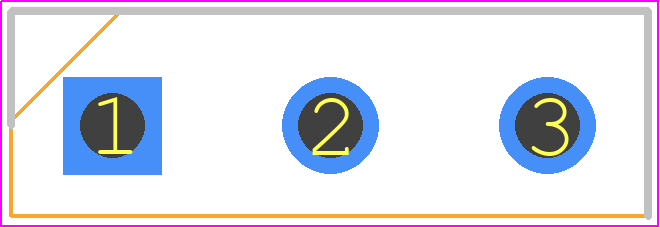

IKQ50N120CH3XKSA1 - Infineon PCB footprint - Transistor Outline, Vertical - Transistor Outline, Vertical - PG-TO247-3-46
click to zoom
3D Models
IKQ50N120CH3XKSA1 - Infineon - 3D model - Transistor Outline, Vertical - PG-TO247-3-46
click to zoom

IKQ50N120CH3XKSA1 Details

  • Manufacturer Part Number:

    IKQ50N120CH3XKSA1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TO-247-3-46, 3 PIN

  • Country Of Origin:

    Austria, Germany, Mainland China, Mexico

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    26 Weeks

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    5

  • Collector Current-Max (IC):

    100 A

  • Collector-Emitter Voltage-Max:

    1200 V

  • Configuration:

    SINGLE WITH BUILT-IN DIODE

  • JEDEC-95 Code:

    TO-247

  • JESD-30 Code:

    R-PSFM-T3

  • JESD-609 Code:

    e3

  • Number of Elements:

    1

  • Number of Terminals:

    3

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLANGE MOUNT

  • Polarity/Channel Type:

    N-CHANNEL

  • Surface Mount:

    NO

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Position:

    SINGLE

  • Transistor Application:

    POWER CONTROL

  • Transistor Element Material:

    SILICON

  • Turn-off Time-Nom (toff):

    466 ns

  • Turn-on Time-Nom (ton):

    68 ns

IKQ50N120CH3XKSA1 Frequently Asked Questions (FAQs)

  • The maximum allowed overcurrent for the IKQ50N120CH3XKSA1 is 2.5 times the nominal current (50A) for a maximum of 10ms, according to the datasheet.
  • To ensure proper thermal management, ensure a good thermal interface between the module and the heat sink, use a heat sink with a thermal resistance of ≤ 0.5 K/W, and maintain a maximum junction temperature of 150°C.
  • The recommended gate resistor value for the IKQ50N120CH3XKSA1 is between 10Ω and 20Ω, depending on the specific application and switching frequency.
  • Yes, the IKQ50N120CH3XKSA1 can be used in a parallel configuration, but it's essential to ensure that the modules are matched in terms of electrical characteristics and thermal performance to avoid uneven current sharing.
  • The maximum allowed voltage imbalance between the DC links in a 3-phase inverter using the IKQ50N120CH3XKSA1 is ±10% of the nominal DC voltage.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

IKQ50N120CH3XKSA1 Overview

Use the download button to access the IKQ50N120CH3XKSA1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like IKQ50, or try a keyword search, such as IGBTs
