A good PCB layout for the IL260-3E involves keeping the input and output traces separate, using a ground plane, and minimizing the distance between the device and the isolation barrier. NVE Corporation provides a recommended PCB layout in their application notes.
To ensure reliable operation of the IL260-3E in high-temperature environments, it's essential to follow proper thermal management practices, such as providing adequate heat sinking, using thermal interface materials, and keeping the device within its specified operating temperature range.
The IL260-3E has built-in ESD protection, but it's still important to follow proper ESD handling procedures during assembly and installation. NVE Corporation recommends following the ESD Association's standard for ESD control, ANSI/ESD S20.20.
Yes, the IL260-3E is designed for use in safety-critical applications. It meets the requirements of IEC 61508 and is certified to SIL 2 (Safety Integrity Level 2). However, it's essential to follow NVE Corporation's guidelines for safety-critical applications and to consult with a qualified safety expert.
To troubleshoot issues with the IL260-3E, start by checking the power supply, input, and output connections. Verify that the device is properly configured and that the input signals are within the specified range. If the issue persists, consult NVE Corporation's application notes and contact their technical support team for assistance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
IL260-3E Overview

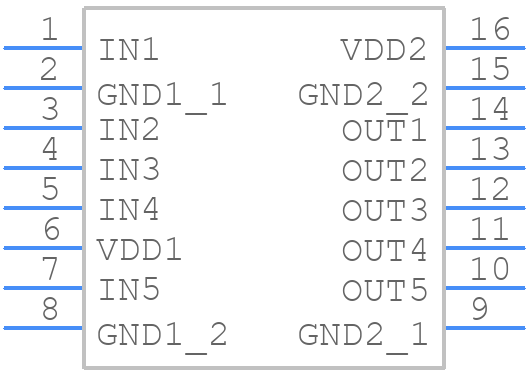

Use the download button to access the IL260-3E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like IL260,
or try a keyword search, such as Other Interface ICs
