Part Image

IL3085-3E - NVE

Description: RS422, RS485 Digital Isolator 2500Vrms 3 Channel 4Mbps 30kV/µs CMTI 16-SOIC (0.154", 3.90mm Width)

Download IL3085-3E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

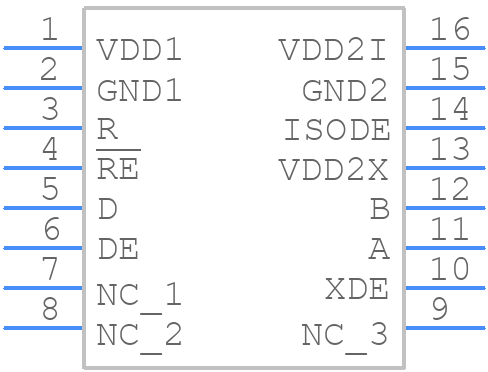

IL3085-3E - NVE - PCB symbol
click to zoom
PCB Footprints
IL3085-3E - NVE PCB footprint - Small Outline Packages - Small Outline Packages - 16-pin SOIC
click to zoom
3D Models
IL3085-3E - NVE - 3D model - Small Outline Packages - 16-pin SOIC
click to zoom

IL3085-3E Details

  • Manufacturer Part Number:

    IL3085-3E

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    NVE Corporation

  • YTEOL:

    6

  • Differential Output:

    YES

  • Driver Number of Bits:

    1

  • High Level Input Current-Max:

    0.00001 A

  • Interface IC Type:

    LINE TRANSCEIVER

  • JESD-30 Code:

    R-PDSO-G16

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Out Swing-Min:

    1.5 V

  • Output Low Current-Max:

    0.008 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Qualification Status:

    Not Qualified

  • Supply Current-Max:

    16 mA

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

IL3085-3E Frequently Asked Questions (FAQs)

  • NVE recommends a symmetrical PCB layout with the IL3085-3E at the center, and keeping the input and output traces as short as possible to minimize noise and interference. A ground plane under the device is also recommended to reduce electromagnetic interference.
  • The IL3085-3E requires a bias current of 1-10 mA to operate correctly. Ensure that the bias current is within this range by using a suitable resistor value in the bias circuit. Additionally, the bias voltage should be between 3.3V and 5V.
  • The IL3085-3E is rated for operation from -40°C to 125°C. However, it's recommended to operate the device within a temperature range of -20°C to 85°C for optimal performance and reliability.
  • The IL3085-3E has built-in ESD protection, but it's still recommended to follow proper ESD handling procedures when handling the device. Use an ESD wrist strap or mat, and ensure that the device is stored in an ESD-safe environment.
  • Store the IL3085-3E in a dry, cool place away from direct sunlight. The recommended storage temperature range is -20°C to 30°C, and the relative humidity should be below 60%.
