IL715-3E - NVE

Description: NVE IL715-3E 4-channel Digital Isolator, 2500 V ac

Download IL715-3E Model

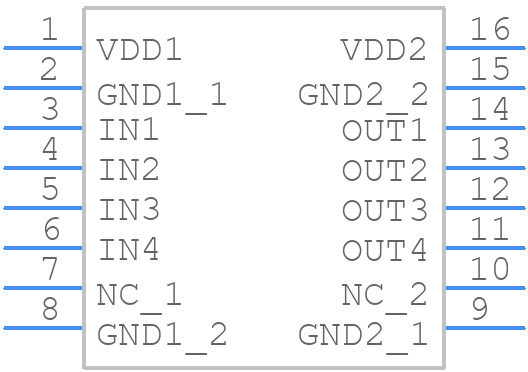

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
IL715-3E - NVE PCB footprint - Small Outline Packages - Small Outline Packages - 0.15" 16-pin SOIC Package (-3 suffix)
click to zoom
3D Models
IL715-3E - NVE  - 3D model - Small Outline Packages - 0.15" 16-pin SOIC Package (-3 suffix)
click to zoom

IL715-3E Details

  • Manufacturer Part Number:

    IL715-3E

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    SOIC-16

  • Pin Count:

    16

  • Country Of Origin:

    USA

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    NVE Corporation

  • Interface IC Type:

    DIGITAL ISOLATOR

  • JESD-30 Code:

    R-PDSO-G16

  • Length:

    9.9 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    4

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Seated Height-Max:

    1.88 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.7 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    3.9 mm

IL715-3E Frequently Asked Questions (FAQs)

  • A good PCB layout for the IL715-3E involves keeping the input and output traces short and away from each other, using a solid ground plane, and minimizing the number of vias and layer changes. NVE Corporation provides a recommended PCB layout in their application notes.
  • To ensure reliable operation of the IL715-3E in high-temperature environments, it's essential to follow proper thermal management practices, such as providing adequate heat sinking, using thermal interface materials, and keeping the device away from heat sources. Additionally, consider using a thermally-enhanced package or a heat sink to reduce the junction temperature.
  • The IL715-3E has built-in ESD protection, but it's still essential to follow proper ESD handling and storage procedures to prevent damage. Use ESD-safe materials, handle the device by the body, and avoid touching the pins or leads. For added protection, consider using ESD-protective packaging and storage materials.
  • Yes, the IL715-3E is designed to operate in high-vibration environments. However, it's crucial to ensure that the device is properly secured to the PCB and that the PCB is securely attached to the system. Additionally, consider using vibration-dampening materials and following proper PCB design practices to minimize the effects of vibration.
  • To troubleshoot issues with the IL715-3E, start by verifying the power supply and input signals. Check for proper voltage levels, signal integrity, and signal timing. Use oscilloscopes and logic analyzers to debug the signals. If the issue persists, consult the datasheet and application notes, and contact NVE Corporation's technical support for further assistance.
