Part Image

IL716E - NVE

Description: NVE IL716E 4-channel Digital Isolator, 2500 V ac

Download IL716E Model

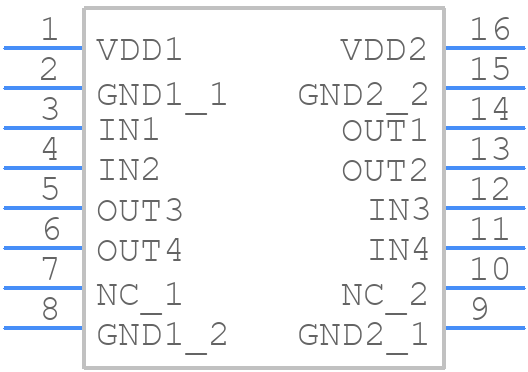

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
IL716E - NVE PCB footprint - Small Outline Packages - Small Outline Packages - 0.3" 16-pin SOIC Package
click to zoom
3D Models
IL716E - NVE  - 3D model - Small Outline Packages - 0.3" 16-pin SOIC Package
click to zoom

IL716E Details

  • Manufacturer Part Number:

    IL716E

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    SOIC-16

  • Pin Count:

    16

  • Country Of Origin:

    USA

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    NVE Corporation

  • Interface IC Type:

    DIGITAL ISOLATOR

  • JESD-30 Code:

    R-PDSO-G16

  • Length:

    10.285 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    4

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    2.8 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.7 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.505 mm

IL716E Frequently Asked Questions (FAQs)

  • NVE recommends a 4-layer PCB with a solid ground plane, and to keep the IL716E away from high-current carrying traces. Additionally, use a low-ESR capacitor (e.g., 100nF) between VCC and GND, and a 1kΩ resistor in series with the output to reduce ringing.
  • NVE recommends using a heat sink or thermal pad to keep the junction temperature below 125°C. Ensure good airflow, and consider using a thermal interface material (TIM) to improve heat transfer. Also, derate the output current according to the temperature derating curve in the datasheet.
  • The recommended input voltage range is 4.5V to 5.5V. The output voltage is proportional to the input voltage, with a typical output voltage of 1.5V to 2.5V for a 5V input. Ensure the input voltage is within the recommended range to maintain output voltage regulation.
  • Check the input voltage, output load, and PCB layout for any issues. Verify that the input capacitor is properly sized and placed. Use an oscilloscope to measure the output voltage and check for noise or oscillations. Consult the NVE application note AN-13 for troubleshooting guidelines.
  • Yes, the IL716E can be used in redundant or fault-tolerant systems. However, ensure that the output voltage is properly synchronized and monitored to prevent voltage conflicts or oscillations. Consult with NVE or a qualified engineer to design a reliable and fault-tolerant system.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

IL716E Overview

Use the download button to access the IL716E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like IL716, or try a keyword search, such as Other Interface ICs
