ILD256T - Vishay

Description: Vishay ILD256T AC Input Phototransistor Output Dual Optocoupler, Through Hole, 8-Pin SOIC

Download ILD256T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

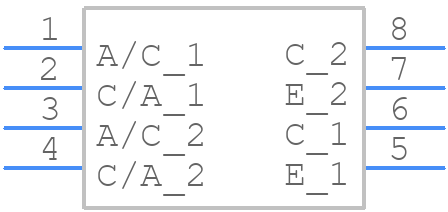

Symbol
ILD256T - Vishay - PCB symbol
click to zoom
PCB Footprints
ILD256T - Vishay PCB footprint - Small Outline Packages - Small Outline Packages - ILD256T
click to zoom
3D Models
ILD256T - Vishay - 3D model - Small Outline Packages - ILD256T
click to zoom

ILD256T Details

  • Manufacturer Part Number:

    ILD256T

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    SOIC-8

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.40.80.00

  • Factory Lead Time:

    4 Weeks

  • Manufacturer:

    Vishay Intertechnologies

  • YTEOL:

    0

  • Coll-Emtr Bkdn Voltage-Min:

    70 V

  • Configuration:

    SEPARATE, 2 CHANNELS

  • Current Transfer Ratio-Nom:

    20%

  • Dark Current-Max:

    50 nA

  • Forward Current-Max:

    0.03 A

  • Isolation Voltage-Max:

    3000 V

  • JESD-609 Code:

    e3

  • Number of Elements:

    2

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -55 °C

  • Optoelectronic Device Type:

    AC INPUT-TRANSISTOR OUTPUT OPTOCOUPLER

  • Terminal Finish:

    Matte Tin (Sn)

ILD256T Frequently Asked Questions (FAQs)

  • A thermal pad on the bottom of the package is recommended for optimal thermal performance. A copper pour on the PCB with multiple vias to a solid ground plane is also recommended to dissipate heat efficiently.
  • Ensure that the device is operated within the recommended temperature range (up to 150°C). Use a heat sink or thermal interface material to improve heat dissipation. Also, consider derating the current and voltage ratings at high temperatures.
  • A soldering profile with a peak temperature of 260°C and a dwell time of 10-30 seconds is recommended. Avoid exceeding 280°C to prevent damage to the device.
  • Handle the device with ESD-protective equipment and follow proper ESD-handling procedures. Use an ESD-protective wrist strap or mat, and ensure that the device is stored in an ESD-protective package.
  • Store the device in a dry, cool place (below 30°C and 60% relative humidity). Avoid exposing the device to direct sunlight, moisture, or extreme temperatures.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ILD256T Overview

Use the download button to access the ILD256T schematic symbol, PCB footprint, and 3D model.
