A 2-layer or 4-layer PCB with a solid ground plane and thermal vias is recommended. The device should be placed near a heat sink or a thermal pad to dissipate heat efficiently.
Use a shielded cable and connector, and ensure the device is placed in a metal enclosure. Additionally, follow good PCB design practices, such as separating analog and digital grounds, and using decoupling capacitors.
The maximum allowed voltage on the input pins is 5.5V, exceeding which may damage the device. Ensure that the input voltage is within the recommended operating range.
Use a logic analyzer or oscilloscope to monitor the input and output signals. Check the power supply voltage, input signal integrity, and output load conditions. Consult the datasheet and application notes for troubleshooting guidelines.
The device is rated for operation up to 125°C. However, the maximum junction temperature (Tj) should not exceed 150°C. Ensure proper heat sinking and thermal management to prevent overheating.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ILD6070XUMA1 Overview

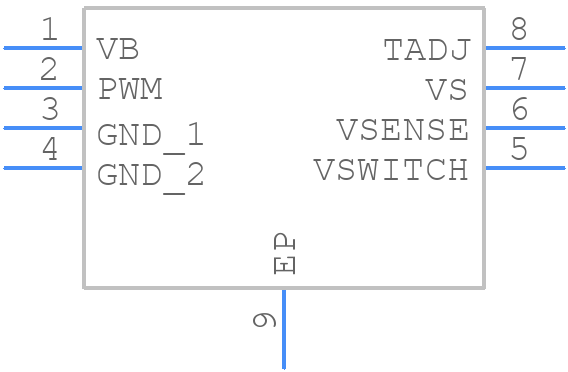

Use the download button to access the ILD6070XUMA1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ILD60,
or try a keyword search, such as Display Drivers
