A recommended PCB layout for optimal thermal performance would be to use a large copper area on the top and bottom layers, connected by multiple thermal vias, to dissipate heat efficiently. Additionally, keeping the component away from other heat sources and using a thermal pad or heat sink can further improve thermal performance.
To ensure reliable soldering and avoid damage, follow the recommended soldering profile, use a solder with a melting point below 260°C, and avoid applying excessive force or pressure during assembly. It's also essential to handle the component by the body, not the leads, and to avoid bending or flexing the leads excessively.
Operating the ILD620-X009T beyond the recommended temperature range can lead to reduced reliability, decreased performance, and potentially even failure. High temperatures can cause the component to degrade, leading to increased thermal resistance, reduced current handling, and increased risk of thermal runaway.
To select the appropriate current rating, consider the maximum expected current in your application, taking into account factors such as inrush current, steady-state current, and any potential current spikes. Ensure the selected current rating is below the maximum rated current of the ILD620-X009T to maintain reliability and prevent overheating.
The ILD620-X009T is sensitive to electrostatic discharge (ESD). To prevent damage, handle the component in an ESD-protected environment, use ESD-protective packaging, and follow proper handling and assembly procedures. It's also recommended to use ESD protection devices, such as TVS diodes, in the circuit design.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ILD620-X009T Overview

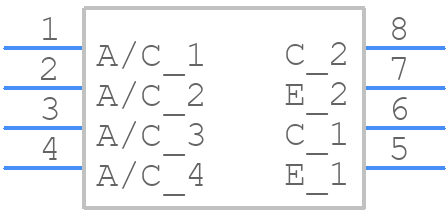

Use the download button to access the ILD620-X009T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ILD62,
or try a keyword search, such as Optocoupler
