Infineon recommends a 2-layer or 4-layer PCB with a thermal via array under the device to improve heat dissipation. A minimum of 10 thermal vias with a diameter of 0.3 mm is recommended.
Infineon recommends using a thermal interface material (TIM) with a thermal conductivity of at least 1 W/mK between the device and the heat sink. Additionally, ensure that the heat sink is properly attached to the device using a suitable mounting method.
The maximum allowed voltage on the VIN pin is 36 V, but it's recommended to operate within the specified range of 12 V to 24 V for optimal performance and reliability.
The device requires a specific power sequencing to ensure proper operation. The VIN pin should be powered up before the VCC pin, and the VCC pin should be powered down before the VIN pin. A minimum delay of 10 ms is recommended between power-up and power-down sequences.
Infineon recommends using a human-body model (HBM) ESD protection of at least 2 kV and a charged-device model (CDM) ESD protection of at least 500 V to ensure reliable operation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ILD8150EXUMA1 Overview

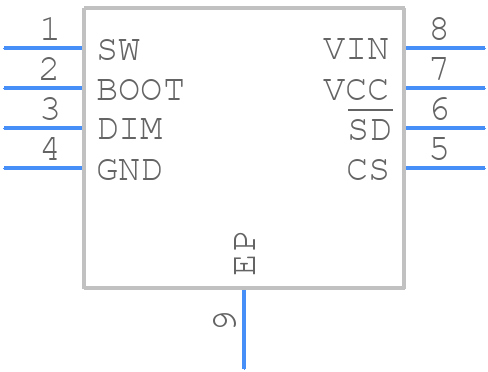

Use the download button to access the ILD8150EXUMA1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ILD81,
or try a keyword search, such as Display Drivers
