Infineon recommends a 2-layer or 4-layer PCB with a thermal via array under the device to improve heat dissipation. A minimum of 10 thermal vias with a diameter of 0.3 mm is recommended.
Infineon recommends using a thermal interface material (TIM) with a thermal conductivity of at least 1 W/mK between the device and the heat sink. Additionally, ensure good airflow and avoid blocking the airflow around the device.
The maximum allowed voltage on the input pins is 5.5 V. Exceeding this voltage may damage the device.
Infineon recommends using ESD-protective packaging, handling the device by the body, and using an ESD wrist strap or mat during assembly. Avoid touching the device pins or handling the device in environments with high humidity.
Infineon recommends a soldering profile with a peak temperature of 260°C, a dwell time above 217°C of 60-90 seconds, and a cooling rate of 4-6°C/s.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ILD8150XUMA1 Overview

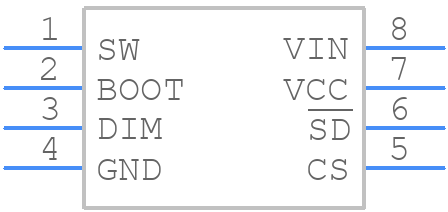

Use the download button to access the ILD8150XUMA1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ILD81,
or try a keyword search, such as Display Drivers
