ILQ2-X009 - Vishay

Description: VISHAY - ILQ2-X009 - OPTOCOUPLER, PHOTOTRANSISTOR, 5.3KV

Download ILQ2-X009 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

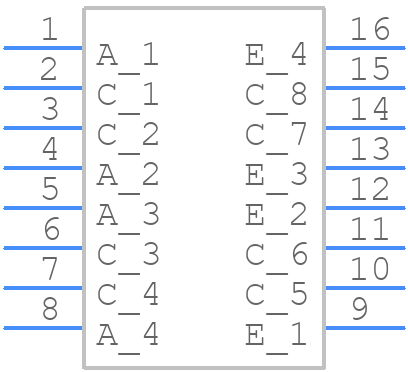

ILQ2-X009 - Vishay - PCB symbol
click to zoom
PCB Footprints
ILQ2-X009 - Vishay PCB footprint - Small Outline Packages - Small Outline Packages - SMD-16
click to zoom
3D Models
ILQ2-X009 - Vishay - 3D model - Small Outline Packages - SMD-16
click to zoom

ILQ2-X009 Details

  • Manufacturer Part Number:

    ILQ2-X009

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.40.80.00

  • Manufacturer:

    Vishay Intertechnologies

  • YTEOL:

    0

  • Additional Feature:

    UL RECOGNIZED

  • Coll-Emtr Bkdn Voltage-Min:

    70 V

  • Configuration:

    SEPARATE, 4 CHANNELS

  • Current Transfer Ratio-Min:

    100%

  • Current Transfer Ratio-Nom:

    200%

  • Dark Current-Max:

    50 nA

  • Forward Current-Max:

    0.06 A

  • Forward Voltage-Max:

    1.65 V

  • Isolation Voltage-Max:

    5300 V

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Elements:

    4

  • On-State Current-Max:

    0.05 A

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    TRANSISTOR OUTPUT OPTOCOUPLER

  • Power Dissipation-Max:

    0.2 W

  • Response Time-Max:

    0.0000026 s

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

ILQ2-X009 Frequently Asked Questions (FAQs)

  • The recommended storage condition for ILQ2-X009 is in a dry, cool place, away from direct sunlight and moisture, with a temperature range of -40°C to 125°C.
  • Yes, ILQ2-X009 is suitable for high-frequency applications up to 1 GHz due to its low equivalent series resistance (ESR) and high self-resonant frequency.
  • The capacitance of ILQ2-X009 decreases as the operating temperature increases. The capacitance change is approximately -22% from 25°C to 125°C.
  • Yes, ILQ2-X009 is compatible with lead-free soldering processes, with a recommended peak reflow temperature of 260°C.
  • The recommended land pattern for ILQ2-X009 is a rectangular pad with a minimum size of 1.5 mm x 3.5 mm, with a non-solder mask defined (NSMD) pad shape.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ILQ2-X009 Overview

Use the download button to access the ILQ2-X009 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ILQ2-, or try a keyword search, such as Optocoupler
