ILQ55 - Vishay

Description: FEATURES • 125 mA load current rating • Fast rise time, 10 μs • Fast fall time, 35 μs • Single, dual, and quad channel • Solid state reliability • Standard DIP packages

Download ILQ55 Model

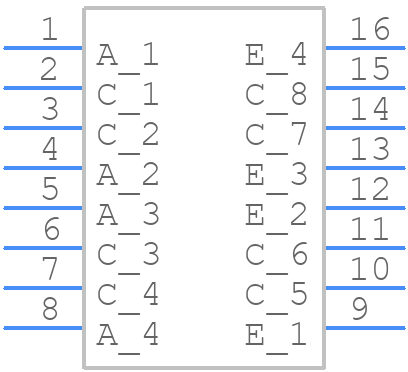

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

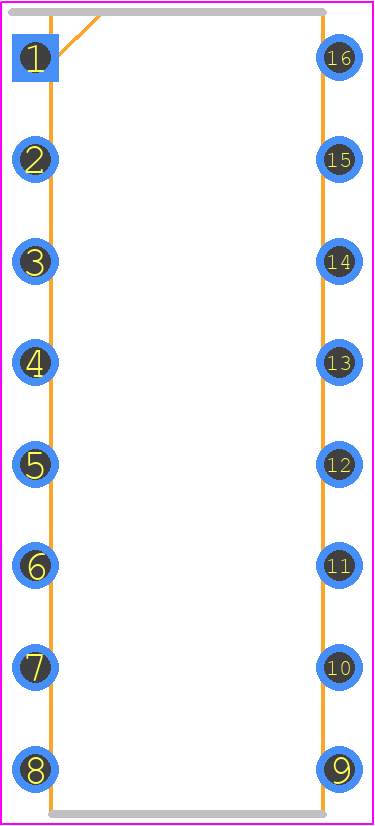

ILQ55 - Vishay PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - DIP-16
click to zoom
3D Models
ILQ55 - Vishay  - 3D model - Dual-In-Line Packages - DIP-16
click to zoom

ILQ55 Details

  • Manufacturer Part Number:

    ILQ55

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.40.80.00

  • Factory Lead Time:

    111 Weeks

  • Manufacturer:

    Vishay Intertechnologies

  • YTEOL:

    0

  • Coll-Emtr Bkdn Voltage-Min:

    55 V

  • Configuration:

    SEPARATE, 4 CHANNELS

  • Current Transfer Ratio-Nom:

    400%

  • Dark Current-Max:

    100 nA

  • Forward Current-Max:

    0.06 A

  • Isolation Voltage-Max:

    5300 V

  • JESD-609 Code:

    e3

  • Number of Elements:

    4

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -55 °C

  • Optoelectronic Device Type:

    DARLINGTON OUTPUT OPTOCOUPLER

  • Terminal Finish:

    Matte Tin (Sn)

ILQ55 Frequently Asked Questions (FAQs)

  • The recommended storage condition for ILQ55 is in a dry, cool place, away from direct sunlight and moisture. The storage temperature should be between -40°C to 125°C.
  • To prevent electrostatic discharge (ESD) damage, handle ILQ55 components with anti-static wrist straps, mats, or bags. Ensure that the workspace and equipment are also ESD-protected.
  • The maximum power rating for ILQ55 is 55W. Exceeding this rating may cause the component to overheat, leading to reduced performance or failure.
  • Yes, ILQ55 is suitable for high-frequency applications up to 1 GHz. However, the component's performance may degrade at higher frequencies due to parasitic inductance and capacitance.
  • Use a soldering iron with a temperature of 260°C (500°F) or less. Apply a small amount of solder paste or flux to the component leads and PCB pads. Avoid overheating or applying excessive force, which can damage the component.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ILQ55 Overview

Use the download button to access the ILQ55 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search or try a keyword search, such as Optocoupler
