ILQ615-2 - Vishay

Description: Opto-isolator,ILQ615-2 5300Vac DIP16

Download ILQ615-2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

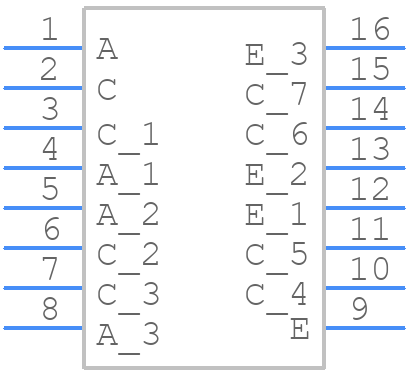

ILQ615-2 - Vishay - PCB symbol
click to zoom
PCB Footprints

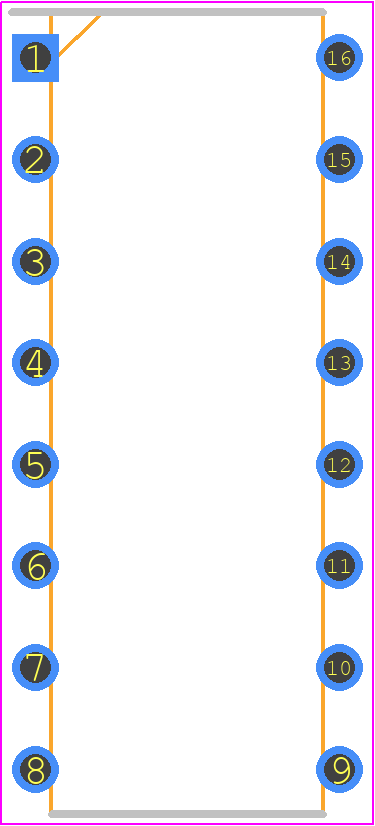

ILQ615-2 - Vishay PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - DIP-16
click to zoom
3D Models
ILQ615-2 - Vishay - 3D model - Dual-In-Line Packages - DIP-16
click to zoom

ILQ615-2 Details

  • Manufacturer Part Number:

    ILQ615-2

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.40.80.00

  • Manufacturer:

    Vishay Intertechnologies

  • YTEOL:

    0

  • Additional Feature:

    UL APPROVED

  • Coll-Emtr Bkdn Voltage-Min:

    70 V

  • Configuration:

    SEPARATE, 4 CHANNELS

  • Current Transfer Ratio-Min:

    22%

  • Current Transfer Ratio-Nom:

    80%

  • Dark Current-Max:

    50 nA

  • Forward Current-Max:

    0.06 A

  • Forward Voltage-Max:

    1.3 V

  • Isolation Voltage-Max:

    5300 V

  • JESD-609 Code:

    e3

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Number of Elements:

    4

  • On-State Current-Max:

    0.05 A

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -55 °C

  • Optoelectronic Device Type:

    TRANSISTOR OUTPUT OPTOCOUPLER

  • Power Dissipation-Max:

    0.15 W

  • Surface Mount:

    NO

  • Terminal Finish:

    Matte Tin (Sn)

ILQ615-2 Frequently Asked Questions (FAQs)

  • The recommended storage condition for ILQ615-2 is in a dry, cool place, away from direct sunlight and moisture, with a temperature range of -40°C to 125°C.
  • Handle the ILQ615-2 by the body, avoid touching the leads or the glass, and use an anti-static wrist strap or mat to prevent electrostatic discharge damage.
  • The maximum allowable voltage for the ILQ615-2 is 150% of the rated voltage, but not exceeding 1000V, for a maximum of 1 minute.
  • Yes, the ILQ615-2 is suitable for high-frequency applications up to 1 GHz, but the user should consider the self-resonant frequency and the impedance characteristics of the device.
  • Use a soldering iron with a temperature of 260°C (500°F) or less, and a solder with a melting point of 180°C (356°F) or higher, and avoid applying excessive force or bending the leads.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ILQ615-2 Overview

Use the download button to access the ILQ615-2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ILQ61, or try a keyword search, such as Optocoupler
