The recommended storage temperature range for ILQ615-3X009T is -40°C to 125°C, as per Vishay's general guidelines for storage and handling of semiconductor devices.
While the ILQ615-3X009T is designed to operate in a wide range of temperatures, it's not recommended for use in high-humidity environments (> 80% RH) without proper protection, such as conformal coating or hermetic sealing, to prevent moisture-related failures.
The maximum allowable voltage for the ILQ615-3X009T is 1.5 times the rated voltage (9V) for a short duration (< 1 second), but it's recommended to operate within the specified voltage range (5V to 9V) for reliable performance and longevity.
To prevent electrostatic discharge (ESD) damage, handle the ILQ615-3X009T with ESD-protective equipment, such as wrist straps, mats, and bags. Ensure that the device is properly grounded during assembly and testing.
While the ILQ615-3X009T is designed for low-frequency applications, it can be used in high-frequency applications up to 100 kHz with proper PCB layout, decoupling, and filtering to minimize parasitic effects and ensure stable operation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ILQ615-3X009T Overview

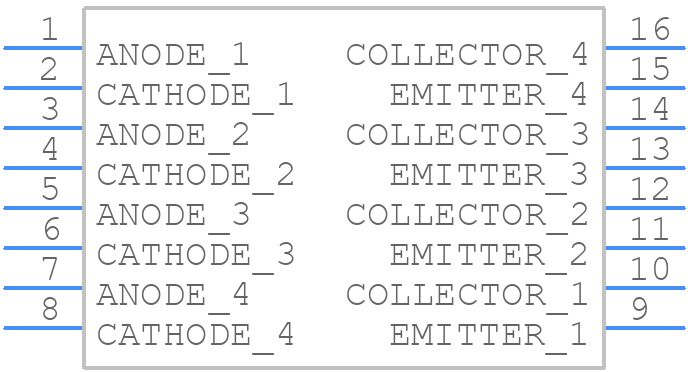

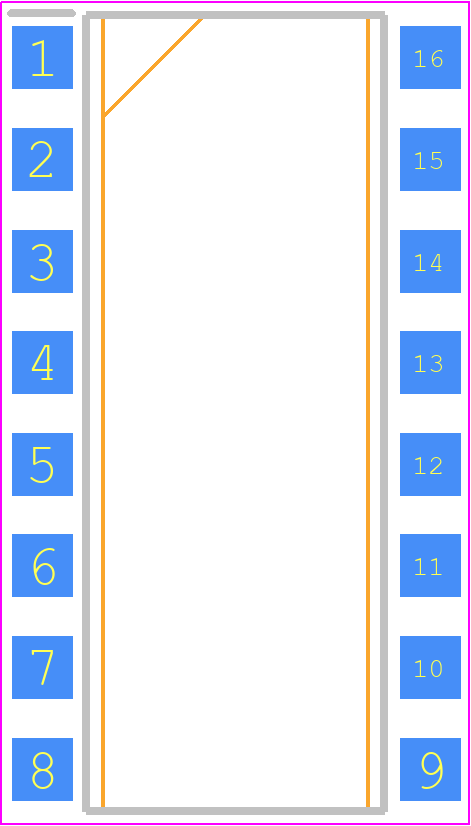

Use the download button to access the ILQ615-3X009T schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like ILQ61,
or try a keyword search, such as Optocoupler
