ILQ620-X009T - Vishay

Description: Transistor Output Optocouplers Phototransistor Out Quad CTR > 50%

Download ILQ620-X009T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

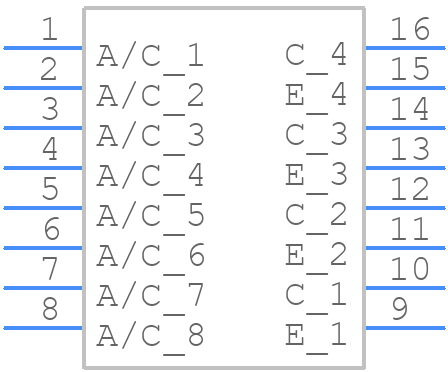

ILQ620-X009T - Vishay - PCB symbol
click to zoom
PCB Footprints
ILQ620-X009T - Vishay PCB footprint - Small Outline Packages - Small Outline Packages - SMD-16 option-9_1
click to zoom
3D Models
ILQ620-X009T - Vishay - 3D model - Small Outline Packages - SMD-16 option-9_1
click to zoom

ILQ620-X009T Details

  • Manufacturer Part Number:

    ILQ620-X009T

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    DIP-16

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.40.80.00

  • Manufacturer:

    Vishay Intertechnologies

  • YTEOL:

    0

  • Additional Feature:

    UL RECOGNIZED

  • Coll-Emtr Bkdn Voltage-Min:

    70 V

  • Configuration:

    SEPARATE, 4 CHANNELS

  • Current Transfer Ratio-Nom:

    80%

  • Dark Current-Max:

    100 nA

  • Forward Current-Max:

    0.06 A

  • Isolation Voltage-Max:

    5300 V

  • Number of Elements:

    4

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -55 °C

  • Optoelectronic Device Type:

    AC INPUT-TRANSISTOR OUTPUT OPTOCOUPLER
