ILQ620 - Vishay

Description: Optocoupler AC-IN 4-CH Trans DC-OUT

Download ILQ620 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

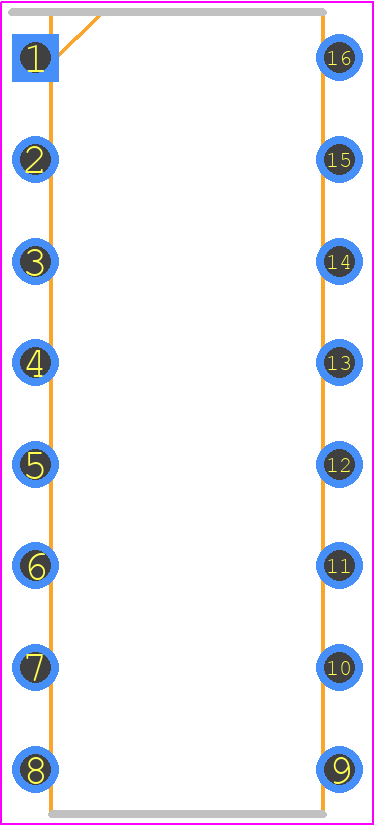

ILQ620 - Vishay PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - ILQ620
click to zoom
3D Models
ILQ620 - Vishay  - 3D model - Dual-In-Line Packages - ILQ620
click to zoom

ILQ620 Details

  • Manufacturer Part Number:

    ILQ620

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.40.80.00

  • Manufacturer:

    Vishay Intertechnologies

  • YTEOL:

    0

  • Coll-Emtr Bkdn Voltage-Min:

    70 V

  • Configuration:

    SEPARATE, 4 CHANNELS

  • Current Transfer Ratio-Nom:

    80%

  • Dark Current-Max:

    100 nA

  • Forward Current-Max:

    0.06 A

  • Isolation Voltage-Max:

    5300 V

  • JESD-609 Code:

    e3

  • Number of Elements:

    4

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -55 °C

  • Optoelectronic Device Type:

    AC INPUT-TRANSISTOR OUTPUT OPTOCOUPLER

  • Terminal Finish:

    Matte Tin (Sn)
