ILQ620GB-X009 - Vishay

Description: Transistor Output Optocouplers Phototransistor Out Quad CTR > 100%

Download ILQ620GB-X009 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

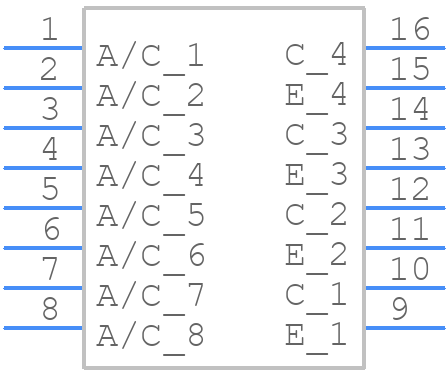

ILQ620GB-X009 - Vishay - PCB symbol
click to zoom
PCB Footprints
ILQ620GB-X009 - Vishay PCB footprint - Small Outline Packages - Small Outline Packages - SMD-16 option-9
click to zoom
3D Models
ILQ620GB-X009 - Vishay - 3D model - Small Outline Packages - SMD-16 option-9
click to zoom

ILQ620GB-X009 Details

  • Manufacturer Part Number:

    ILQ620GB-X009

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    DIP-16

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.40.80.00

  • Factory Lead Time:

    4 Weeks

  • Manufacturer:

    Vishay Intertechnologies

  • YTEOL:

    0

  • Additional Feature:

    UL RECOGNIZED

  • Coll-Emtr Bkdn Voltage-Min:

    70 V

  • Configuration:

    SEPARATE, 4 CHANNELS

  • Current Transfer Ratio-Nom:

    200%

  • Dark Current-Max:

    100 nA

  • Forward Current-Max:

    0.06 A

  • Isolation Voltage-Max:

    5300 V

  • Number of Elements:

    4

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -55 °C

  • Optoelectronic Device Type:

    AC INPUT-TRANSISTOR OUTPUT OPTOCOUPLER

ILQ620GB-X009 Frequently Asked Questions (FAQs)

  • The recommended storage condition for the ILQ620GB-X009 is in a dry, cool place, away from direct sunlight and moisture, with a temperature range of -40°C to 125°C.
  • Handle the ILQ620GB-X009 by the body, avoiding touching the leads or the chip. Use an anti-static wrist strap or mat to prevent electrostatic discharge damage.
  • The maximum allowable voltage for the ILQ620GB-X009 is 25V, exceeding which may cause permanent damage to the device.
  • While the ILQ620GB-X009 can operate up to 150°C, it's recommended to derate the power dissipation to ensure reliable operation in high-temperature environments.
  • To ensure reliability in humid environments, use a conformal coating or potting compound to protect the device from moisture, and follow the recommended storage and handling procedures.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ILQ620GB-X009 Overview

Use the download button to access the ILQ620GB-X009 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ILQ62, or try a keyword search, such as Optocoupler
