Infineon provides a reference design and layout guidelines in their application notes and evaluation boards. It's essential to follow these guidelines to ensure proper thermal management and minimize electromagnetic interference (EMI).
When selecting a gate driver, consider the gate charge, voltage rating, and current capability. Ensure the driver can handle the IM231L6S1BALMA1's gate capacitance and voltage rating. Infineon provides recommendations for compatible gate drivers in their application notes.
Monitor the device's temperature, voltage, and current. Implement overcurrent protection (OCP), overvoltage protection (OVP), and overtemperature protection (OTP) using external circuitry or a dedicated IC. Infineon provides guidelines for fault detection and protection in their application notes.
Follow Infineon's guidelines for PCB layout, component placement, and shielding. Use a common mode choke, ferrite beads, and shielding to minimize EMI. Ensure the design meets relevant EMC standards and regulations.
The IM231L6S1BALMA1 is designed for high reliability. Ensure proper thermal management, operate within the recommended voltage and current ranges, and avoid electrical overstress. Follow Infineon's guidelines for storage, handling, and assembly to minimize defects and ensure a long lifespan.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
IM231L6S1BALMA1 Overview

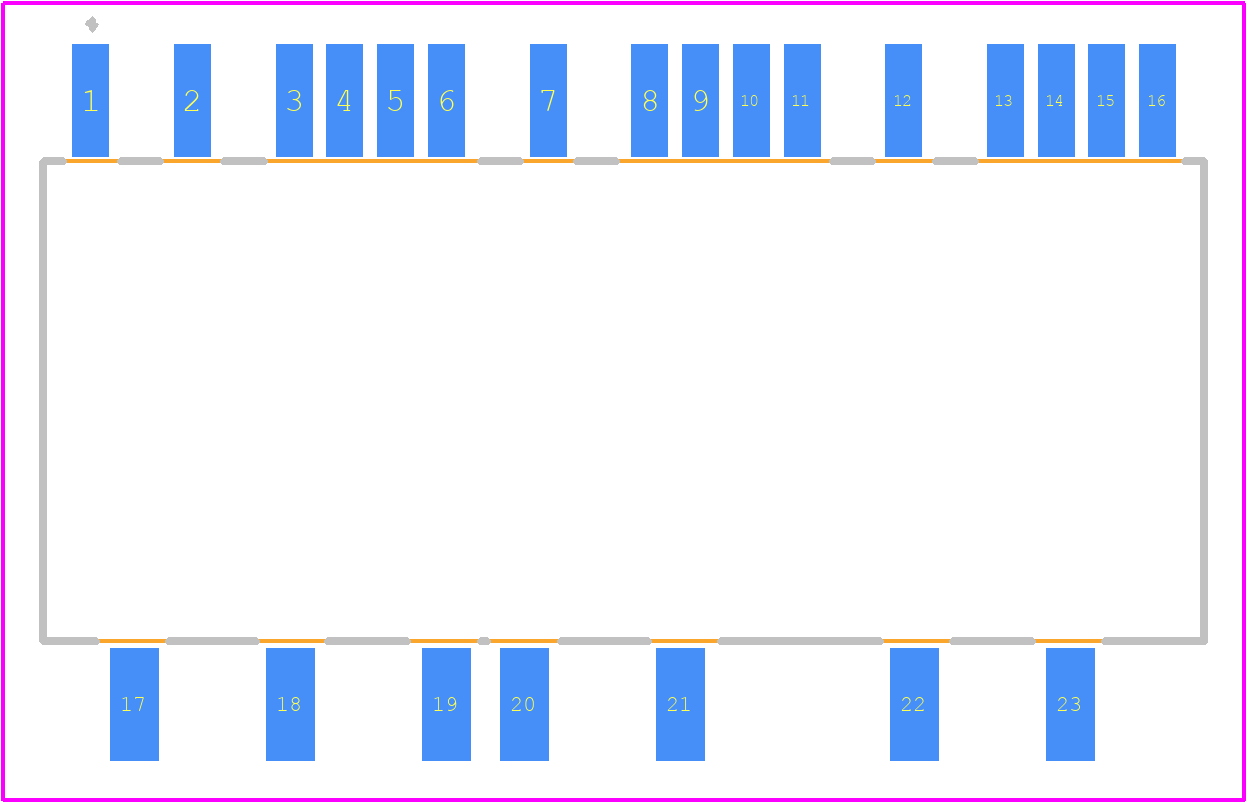

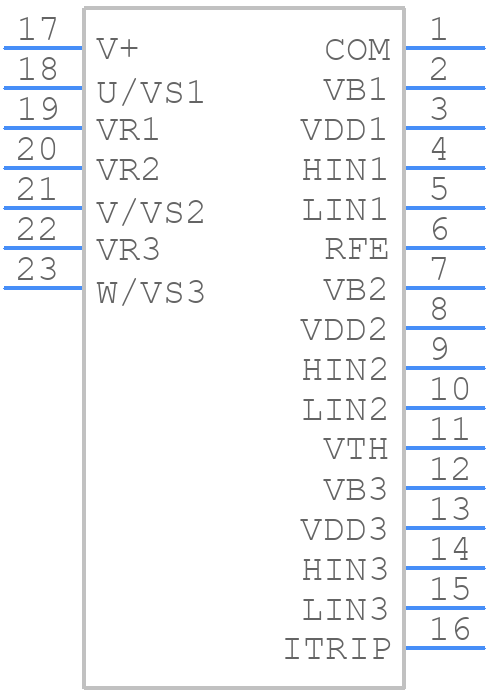

Use the download button to access the IM231L6S1BALMA1 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like IM231,
or try a keyword search, such as Motion Control Electronics
