IM2412SA - XP POWER

Description: XP Power Through Hole 2W Isolated DC-DC Converter, Vin 9 → 36 V dc, I/O isolation 1.5kV dc, Vout 12V dc

Download IM2412SA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

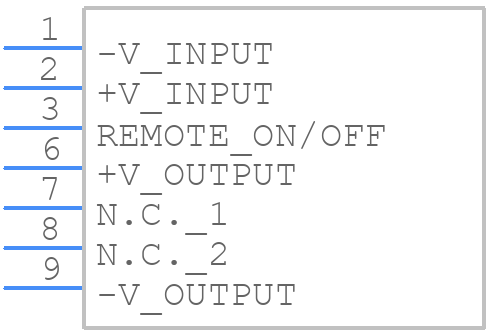

Symbol
IM2412SA - XP POWER - PCB symbol
click to zoom
PCB Footprints
IM2412SA - XP POWER PCB footprint - Other - Other - IM2405S
click to zoom
3D Models
IM2412SA - XP POWER - 3D model - Other - IM2405S
click to zoom

IM2412SA Details

  • Manufacturer Part Number:

    IM2412SA

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    Module-7

  • ECCN Code:

    EAR99

  • Manufacturer:

    XP Power

  • YTEOL:

    6

  • Additional Feature:

    SEATED HT CALCULATED

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Input Voltage-Max:

    36 V

  • Input Voltage-Min:

    9 V

  • Input Voltage-Nom:

    24 V

  • JESD-30 Code:

    R-XSMA-T7

  • Length:

    26 mm

  • Load Regulation-Max:

    0.5%

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    7

  • Operating Temperature-Max:

    75 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.165 A

  • Output Voltage-Max:

    12.12 V

  • Output Voltage-Min:

    11.88 V

  • Output Voltage-Nom:

    12 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    SMA

  • Package Equivalence Code:

    SIP7/9,.12

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    13 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Temperature Grade:

    OTHER

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    SINGLE

  • Total Power Output-Max:

    2 W

  • Trim/Adjustable Output:

    NO

  • Width:

    9.2 mm

IM2412SA Frequently Asked Questions (FAQs)

  • The maximum capacitance load for the IM2412SA is 10uF. Exceeding this value may affect the stability of the output voltage.
  • The IM2412SA is rated for operation up to 85°C ambient temperature. However, derating is required for temperatures above 70°C. Consult the datasheet for derating curves.
  • The IM2412SA meets various safety certifications, including UL, CE, and IEC. However, specific certifications may require additional testing or documentation. Consult XP Power's certification documentation and safety reports for more information.
  • A good PCB layout for the IM2412SA should minimize noise and ensure good thermal dissipation. Keep the input and output capacitors close to the module, and use a solid ground plane to reduce noise. Consult XP Power's application notes for more information.
  • Yes, multiple IM2412SA modules can be paralleled for higher power. However, ensure that the modules are identical and that the output voltages are matched to within 1% to prevent uneven current sharing.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

IM2412SA Overview

Use the download button to access the IM2412SA schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like IM241, or try a keyword search, such as Power Supply Modules
