IM323-L6G - Infineon

Description: CIPOS™ Tiny 600 V, 15 A three-phase IGBT based Intelligent Power Module in DIP 33x19 package with normal lead length (7.2mm).

Download IM323-L6G Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this IM323-L6G model

Email notifications will be applied after download.

Send part feedback

Symbol

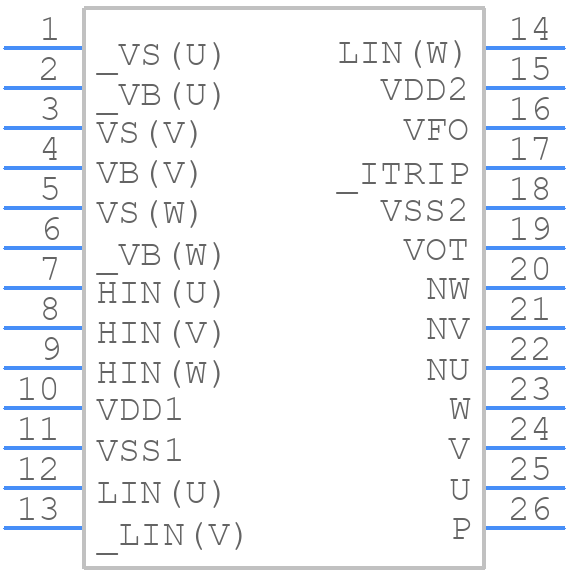

IM323-L6G - Infineon - PCB symbol

PCB Footprints

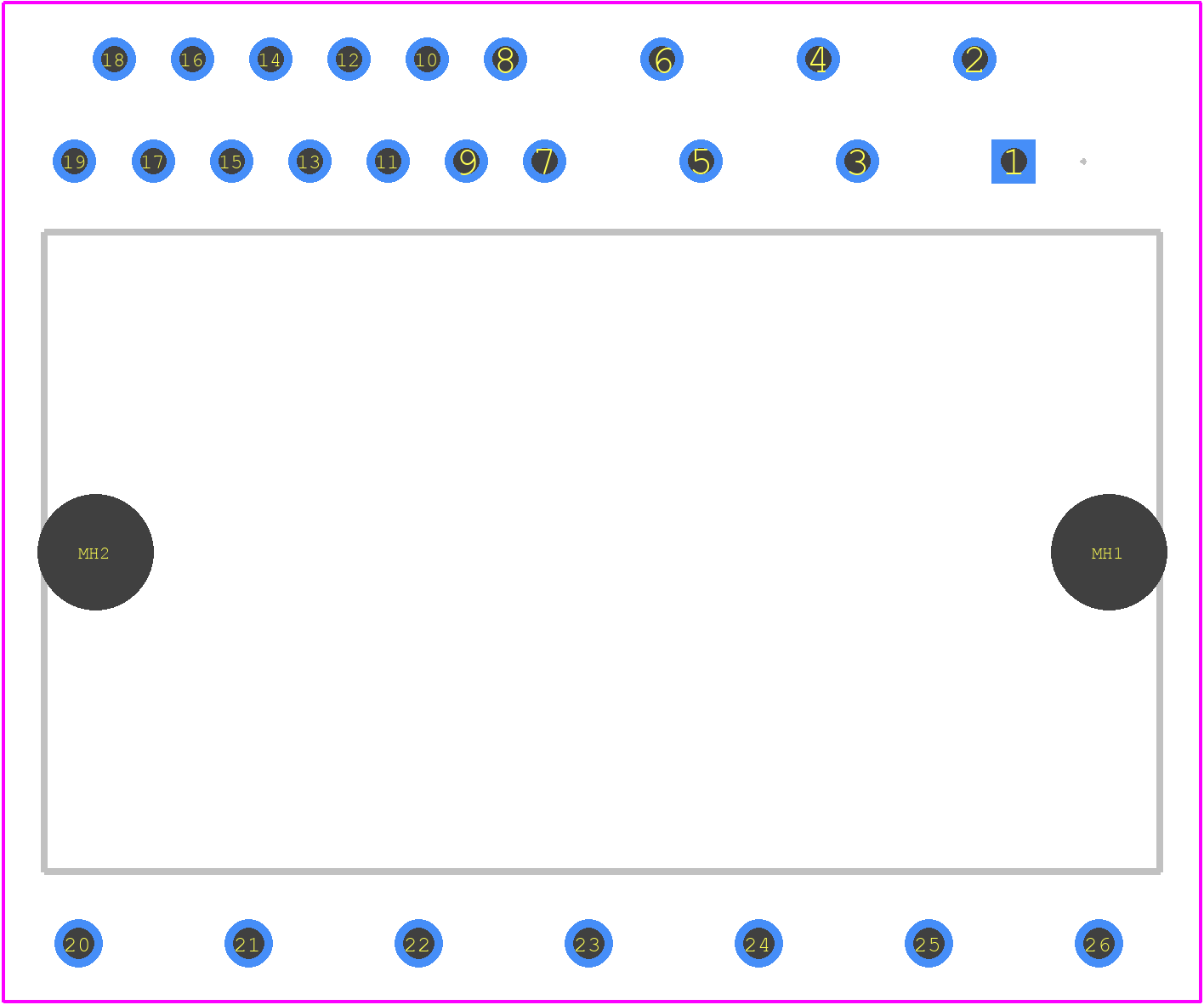

IM323-L6G - Infineon PCB footprint - Other - Other - IM323-L6G-4

3D Models

IM323-L6G - Infineon - 3D model - Other - IM323-L6G-4

Datasheet Download Datasheet
Stock & Prices Price & Stock for IM323-L6G
Part Number IM323-L6G
Manufacturer Infineon
Pin Count 26
Part Category Transistor IGBT
Package Category Other
Footprint Name Other - IM323-L6G-4
Released Date Nov 3, 2023
Last Modified Date Nov 3, 2023 4:49 AM UTC
Pinout / Pin List Click Here (Member Only)

IM323-L6G Details

Manufacturer Part Number:
IM323-L6G
Manufacturer:
Infineon Technologies AG

Trust Checks

Community Provided

System Verified

Community Approved

IM323-L6G Overview

Use the download button to access the IM323-L6G schematic symbol, PCB footprint, and 3D model.
