IM44TS - TE Connectivity

Description: Body Features: Product Weight .75 G | Product Weight .026 OZ | Insulation Special Features 2500V Initial Surge Withstand Voltage between Contacts & Coil | Contact Features: Contact Plating Material Gold | Contact Base Material PdRu+Au | Contact Current Class 0 – 2 AMP | Contact Current Rating (Max) 2 AMP | Contact Arrangement 2 Form C (2 CO) | Contact Number of Poles 2 | Contact Special Features Bifurcated/Twin Contacts | Dimensions: Product Length 10 MM | Product Length .393 INCH | Height Class (Mechanic

Download IM44TS Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

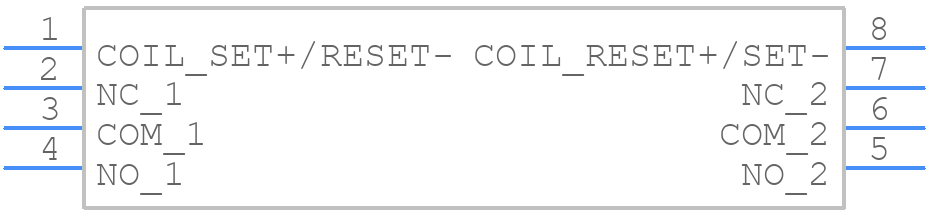

IM44TS - TE Connectivity - PCB symbol
click to zoom
PCB Footprints
IM44TS - TE Connectivity PCB footprint - Other - Other - IM44TS-2
click to zoom
3D Models
IM44TS - TE Connectivity - 3D model - Other - IM44TS-2
click to zoom

IM44TS Details

  • Manufacturer Part Number:

    IM44TS

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    7.4

  • Dielectric Strength Between Coil and Contacts:

    1800 Vrms

  • Dielectric Strength Between Open Contacts:

    750 Vrms

  • Relay Type:

    POWER/SIGNAL RELAY

  • Weight:

    0.75 g

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

IM44TS Overview

Use the download button to access the IM44TS schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like IM44T, or try a keyword search, such as Power/Signal Relays
