IM512L6AXKMA1 - Infineon

Description: INFINEON - IM512L6AXKMA1 - IPM MODULE, MOSFET, 2-PH, 10A, 650V, DIP

Download IM512L6AXKMA1 Model

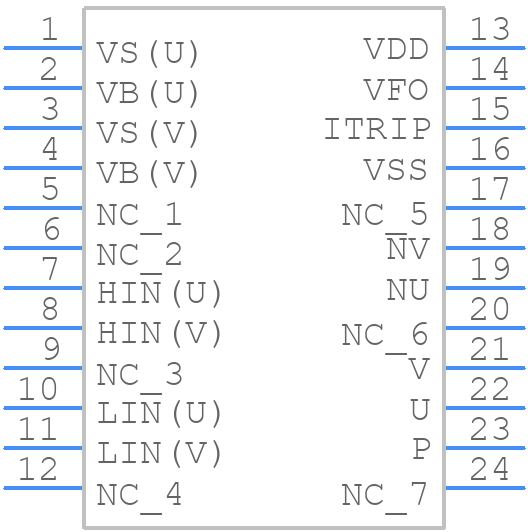

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

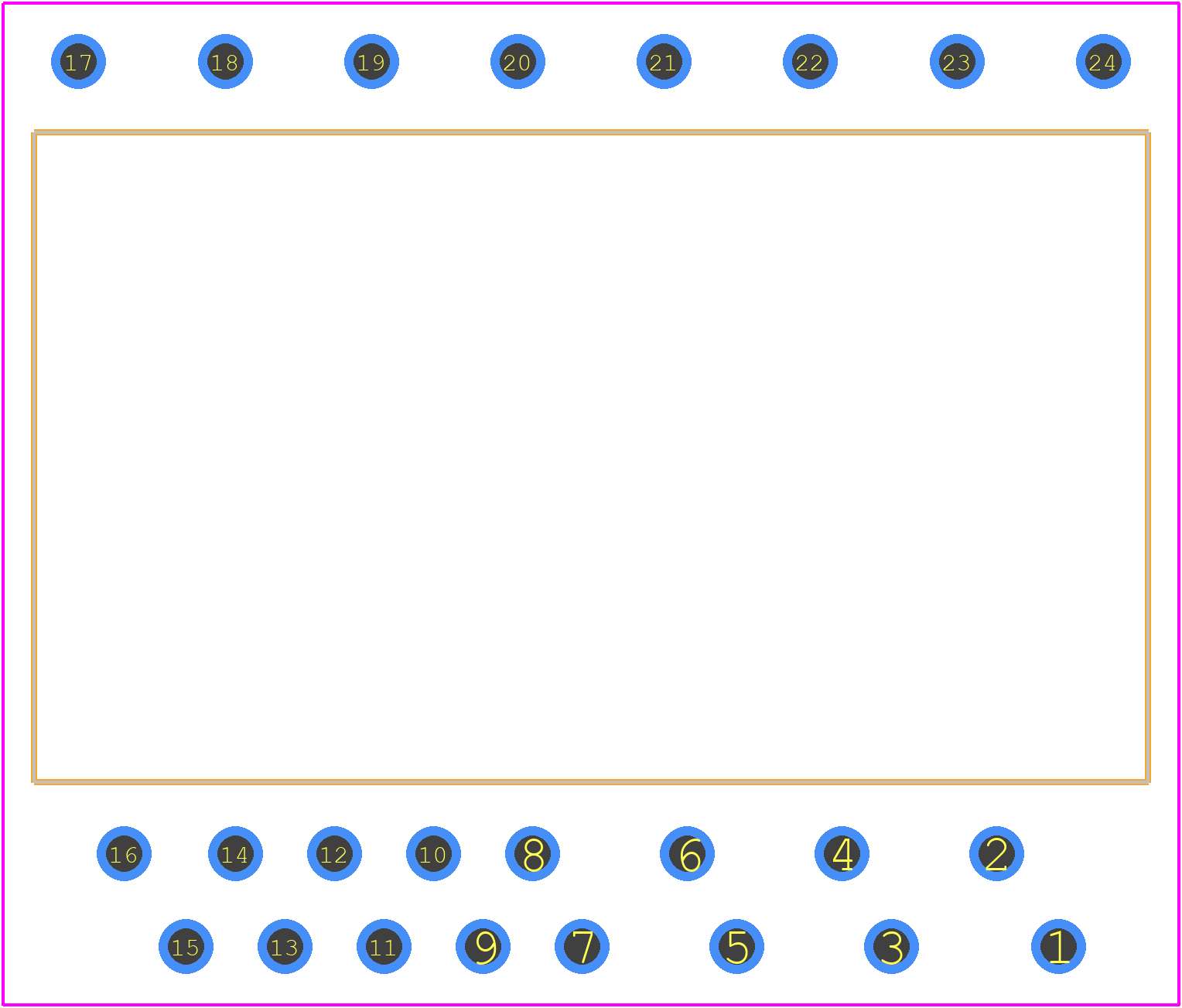

IM512L6AXKMA1 - Infineon PCB footprint - Other - Other - IM512L6AXKMA1
click to zoom
3D Models
IM512L6AXKMA1 - Infineon  - 3D model - Other - IM512L6AXKMA1
click to zoom

IM512L6AXKMA1 Details

  • Manufacturer Part Number:

    IM512L6AXKMA1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    DIP-24

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    0

  • Analog IC - Other Type:

    AC MOTOR CONTROLLER

  • JESD-30 Code:

    R-XZFM-T24

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    10 A

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    ZFM

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Supply Current-Max (Isup):

    0.9 mA

  • Supply Voltage-Max (Vsup):

    18.5 V

  • Supply Voltage-Min (Vsup):

    14 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    NO

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Position:

    DUAL

IM512L6AXKMA1 Frequently Asked Questions (FAQs)

  • Infineon provides a recommended PCB layout in the application note AN2013-03, which includes guidelines for thermal vias, copper thickness, and component placement to ensure optimal thermal performance.
  • Infineon recommends using a gate driver with a minimum output current of 2A and a voltage rating that matches the IGBT's gate-emitter voltage. The driver should also have a suitable propagation delay and rise/fall time to ensure proper switching.
  • The IM512L6AXKMA1 has an internal overcurrent protection (OCP) feature that trips at 12x the nominal current. The OCP is designed to protect the module from damage due to excessive current. However, it's essential to implement an external protection circuit to ensure safe operation and prevent damage to the module and surrounding components.
  • Proper cooling and heat dissipation are crucial for the IM512L6AXKMA1. Ensure good thermal contact between the module and the heat sink, and use a heat sink with a thermal resistance of ≤ 0.5 K/W. Additionally, consider using a fan or other cooling methods to maintain a safe operating temperature.
  • Store the IM512L6AXKMA1 in a dry, cool place, away from direct sunlight and moisture. Handle the module by the edges, avoiding touching the electrical contacts or components. Use an anti-static wrist strap or mat when handling the module to prevent electrostatic discharge (ESD) damage.
