Infineon provides a recommended PCB layout in the application note AN2013-03, which includes guidelines for thermal vias, copper thickness, and component placement to ensure optimal thermal performance.
Infineon recommends using a gate driver with a minimum output current of 2A and a voltage rating that matches the IGBT's gate-emitter voltage. The driver should also have a suitable propagation delay and rise/fall time to ensure proper switching.
The maximum allowed overcurrent is typically specified in the datasheet as a percentage of the nominal current rating. To protect the module, use a fast-acting fuse or a current sensing circuit with a shutdown mechanism to prevent damage from overcurrent conditions.
Ensure good thermal contact between the module and the heat sink, and use a heat sink with a sufficient thermal conductivity. Also, consider using a thermal interface material and ensure good airflow around the heat sink to prevent hot spots.
Infineon provides guidelines for soldering and assembly in the application note AN2013-04, which includes recommendations for soldering temperature, time, and flux type, as well as handling and storage procedures to prevent damage.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
IM513L6AXKMA1 Overview

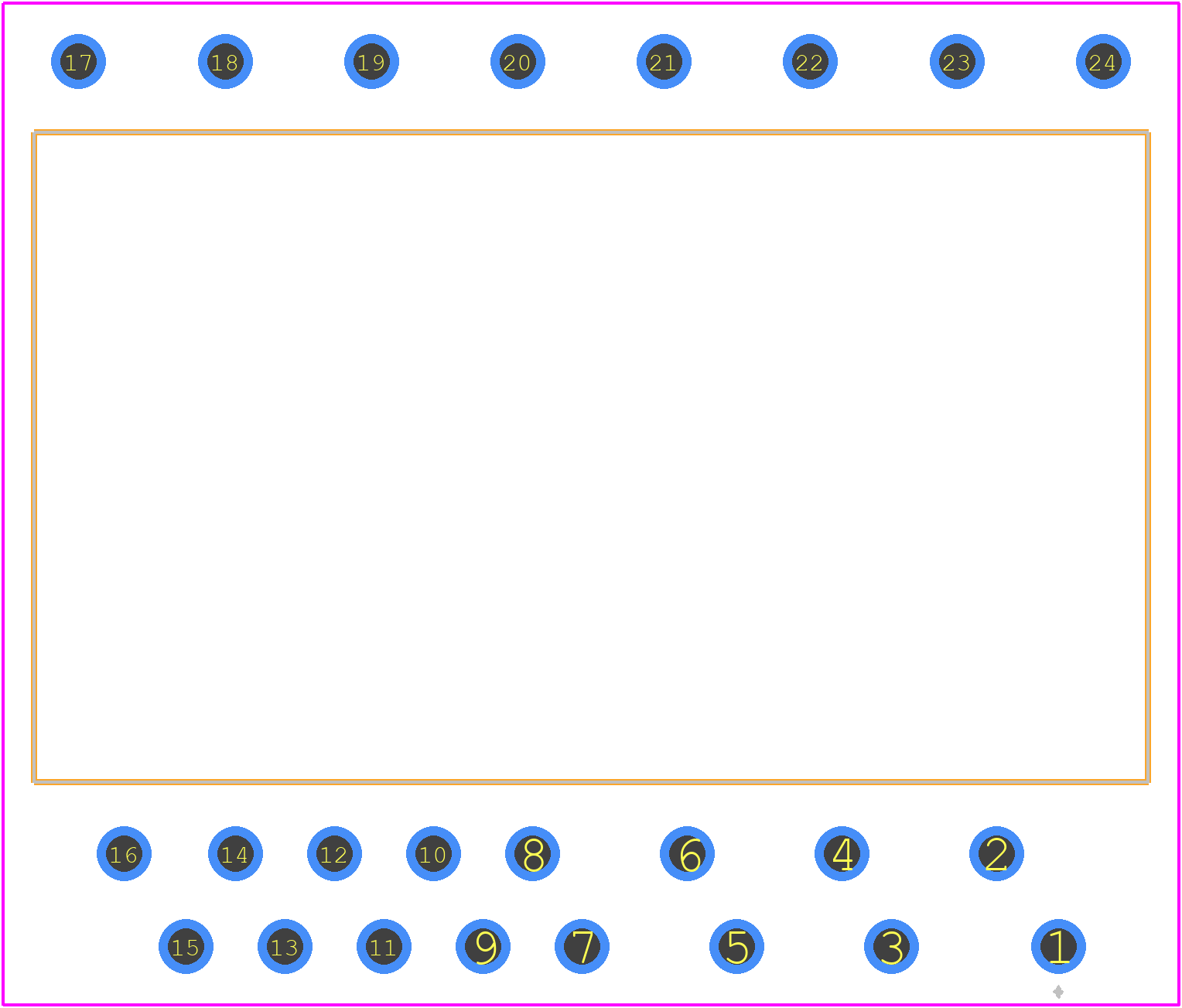

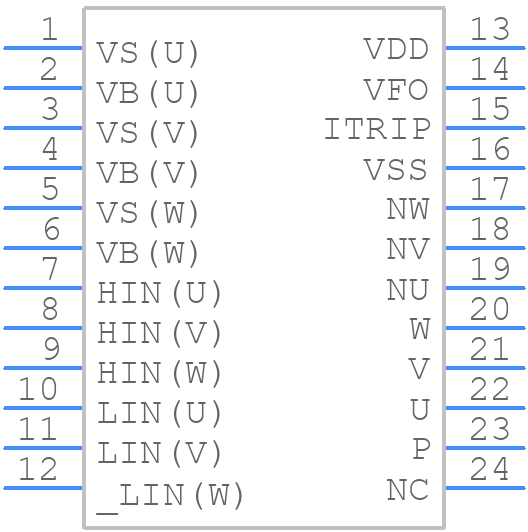

Use the download button to access the IM513L6AXKMA1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like IM513,
or try a keyword search, such as Motion Control Electronics
