IM828XCCXKMA1 - Infineon

Description: Power Driver Module IGBT 3 Phase Inverter 1.2 kV 35 A 24-PowerDIP Module (1.094", 27.80mm)

Download IM828XCCXKMA1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

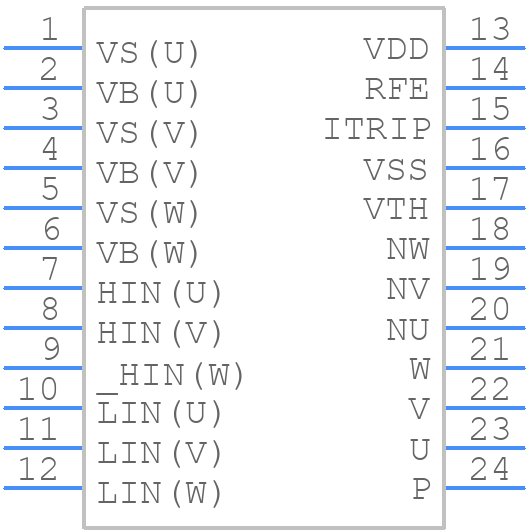

IM828XCCXKMA1 - Infineon - PCB symbol
click to zoom
PCB Footprints

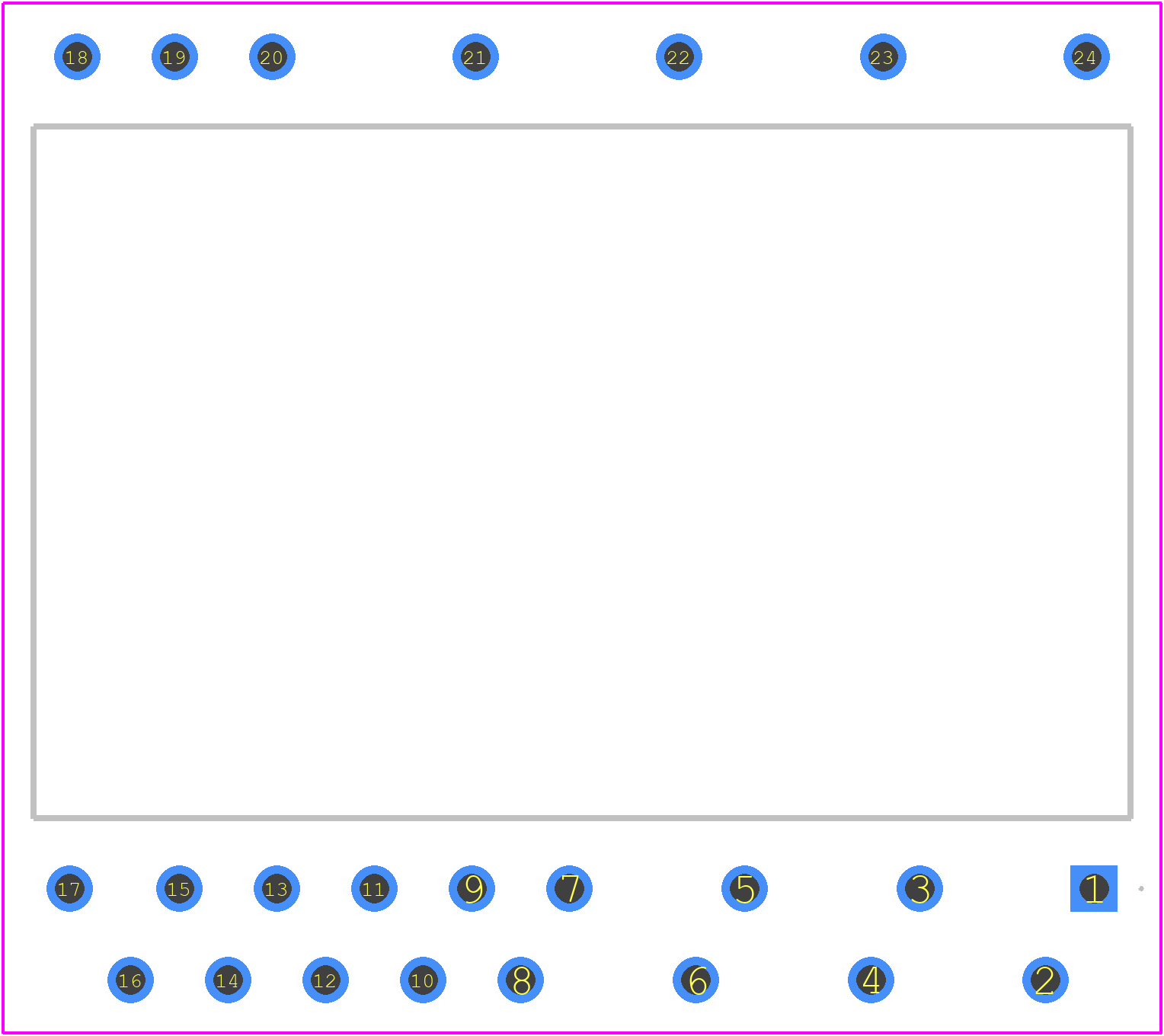

IM828XCCXKMA1 - Infineon PCB footprint - Other - Other - 24-PowerDIP Module_2024
click to zoom
3D Models
IM828XCCXKMA1 - Infineon - 3D model - Other - 24-PowerDIP Module_2024
click to zoom

IM828XCCXKMA1 Details

  • Manufacturer Part Number:

    IM828XCCXKMA1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DIP-36/24 PIN

  • Country Of Origin:

    Malaysia, South Korea

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    27 Weeks

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    6

  • Analog IC - Other Type:

    AC MOTOR CONTROLLER

  • JESD-30 Code:

    R-PDIP-T24

  • Length:

    36 mm

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    35 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP24/36,1

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Seated Height-Max:

    5.6 mm

  • Supply Voltage-Max (Vsup):

    18.5 V

  • Supply Voltage-Min (Vsup):

    13.5 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    1.6 mm

  • Terminal Position:

    DUAL

  • Width:

    22.86 mm

IM828XCCXKMA1 Frequently Asked Questions (FAQs)

  • Infineon recommends a 2-layer or 4-layer PCB with a solid ground plane and thermal vias to ensure good thermal conductivity. A minimum of 1 oz copper thickness is recommended.
  • Infineon recommends using a thermal interface material (TIM) with a thermal conductivity of at least 1 W/mK between the device and the heat sink. Additionally, ensure good airflow and avoid blocking the airflow around the device.
  • The maximum allowed voltage on the VCC pin is 5.5V. Exceeding this voltage may damage the device.
  • Infineon recommends using ESD-protective packaging, handling the device by the body, and using an ESD wrist strap or mat during assembly. Avoid touching the device pins or exposing them to static electricity.
  • Infineon recommends a soldering profile with a peak temperature of 260°C, a dwell time of 30-60 seconds, and a cooling rate of 4°C/s. Avoid exceeding 280°C to prevent damage to the device.
