IMC101TT038XUMA1 - Infineon

Description: INFINEON - IMC101TT038XUMA1 - Motor Driver/Controller, PMSM, 3V to 5.5V, 1 Output, TSSOP-38

Download IMC101TT038XUMA1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

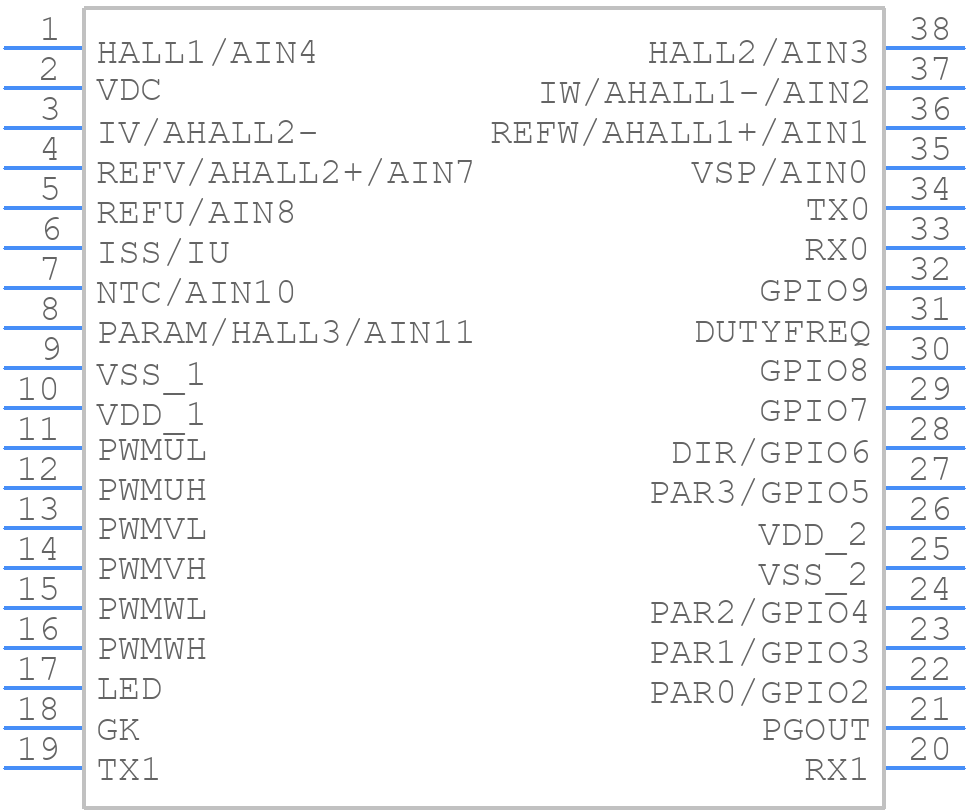

IMC101TT038XUMA1 - Infineon - PCB symbol
click to zoom
PCB Footprints
IMC101TT038XUMA1 - Infineon PCB footprint - Small Outline Packages - Small Outline Packages - PG-TSSOP-38-
click to zoom
3D Models
IMC101TT038XUMA1 - Infineon - 3D model - Small Outline Packages - PG-TSSOP-38-
click to zoom

IMC101TT038XUMA1 Details

  • Manufacturer Part Number:

    IMC101TT038XUMA1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Package Description:

    TSSOP-38

  • Country Of Origin:

    Philippines, Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    22 Weeks

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    3

  • Analog IC - Other Type:

    AC MOTOR CONTROLLER

  • JESD-30 Code:

    R-PDSO-G38

  • Length:

    9.7 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    38

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP38,.25,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, LOW PROFILE, SHRINK PITCH

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max (Isup):

    20 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Width:

    4.4 mm

IMC101TT038XUMA1 Frequently Asked Questions (FAQs)

  • Infineon recommends a thermal pad on the bottom of the package, connected to a large copper area on the PCB to dissipate heat efficiently. A minimum of 2oz copper thickness is recommended.
  • Ensure that the device is operated within the recommended voltage and current ratings, and that the PCB is designed to minimize thermal gradients. Also, consider using a thermal interface material to improve heat transfer between the device and the heat sink.
  • The IMC101TT038XUMA1 has built-in ESD protection, but it's still recommended to follow standard ESD handling precautions during assembly and handling. A minimum of 1kΩ resistance and 100pF capacitance is recommended for ESD protection on the input lines.
  • Yes, the IMC101TT038XUMA1 is qualified for operation in humid environments, but it's recommended to follow proper moisture sensitivity level (MSL) handling and storage procedures to prevent damage.
  • Infineon recommends a soldering profile with a peak temperature of 260°C, a dwell time of 30-60 seconds, and a cooling rate of 4°C/s. Consult the datasheet for more detailed information.
