IMD10AT108 - ROHM Semiconductor

Description: NPN+PNP, SOT-457, Dual Digital Transistor (Bias Resistor Built-in Transistor)

Download IMD10AT108 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

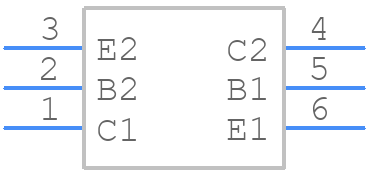

IMD10AT108 - ROHM Semiconductor - PCB symbol
click to zoom
PCB Footprints
IMD10AT108 - ROHM Semiconductor PCB footprint - Other - Other - IMD10AT108-2
click to zoom
3D Models
IMD10AT108 - ROHM Semiconductor - 3D model - Other - IMD10AT108-2
click to zoom

IMD10AT108 Details

  • Manufacturer Part Number:

    IMD10AT108

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SC-74

  • Package Description:

    SMT6, 6 PIN

  • Pin Count:

    6

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    ROHM Semiconductor

  • YTEOL:

    7

  • Additional Feature:

    BUILT-IN BIAS RESISTOR RATIO IS 10

  • Collector Current-Max (IC):

    0.1 A

  • Collector-Emitter Voltage-Max:

    50 V

  • Configuration:

    SEPARATE, 2 ELEMENTS WITH BUILT-IN RESISTOR

  • DC Current Gain-Min (hFE):

    100

  • JESD-30 Code:

    R-PDSO-G6

  • JESD-609 Code:

    e1

  • Number of Elements:

    2

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    150 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Polarity/Channel Type:

    NPN AND PNP

  • Power Dissipation-Max (Abs):

    0.3 W

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Position:

    DUAL

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

  • Transition Frequency-Nom (fT):

    250 MHz
