IMD2AT108 - ROHM Semiconductor

Description: NPN+PNP, SOT-457, Dual Digital Transistor (Bias Resistor Built-in Transistor)

Download IMD2AT108 Model

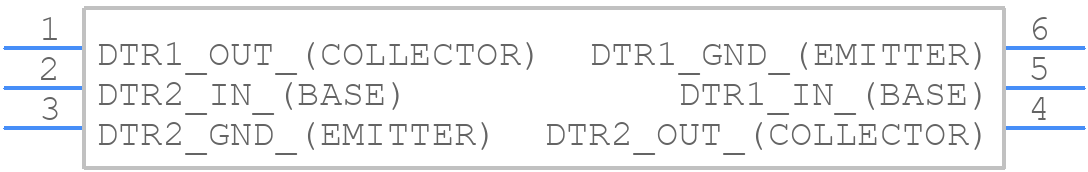

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
IMD2AT108 - ROHM Semiconductor PCB footprint - SOT23 (6-Pin) - SOT23 (6-Pin) - SOT-457 SC-70 (SMT6)
click to zoom
3D Models
IMD2AT108 - ROHM Semiconductor  - 3D model - SOT23 (6-Pin) - SOT-457 SC-70 (SMT6)
click to zoom

IMD2AT108 Details

  • Manufacturer Part Number:

    IMD2AT108

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SC-74

  • Package Description:

    ROHS COMPLIANT, SMT6, SC-74, 6 PIN

  • Pin Count:

    6

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    ROHM Semiconductor

  • YTEOL:

    7

  • Additional Feature:

    BUILT-IN BIAS RESISTOR RATIO IS 1

  • Collector Current-Max (IC):

    0.1 A

  • Collector-Emitter Voltage-Max:

    50 V

  • Configuration:

    SEPARATE, 2 ELEMENTS WITH BUILT-IN RESISTOR

  • DC Current Gain-Min (hFE):

    56

  • JESD-30 Code:

    R-PDSO-G6

  • JESD-609 Code:

    e1

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    2

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    150 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    NPN AND PNP

  • Power Dissipation-Max (Abs):

    0.3 W

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    GULL WING

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

  • Transition Frequency-Nom (fT):

    250 MHz

  • VCEsat-Max:

    0.3 V

IMD2AT108 Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the IMD2AT108 is 1.65V to 3.6V.
  • To ensure the stability of the output voltage, it is recommended to use a 1uF ceramic capacitor at the output pin and a 10nF ceramic capacitor at the input pin.
  • The maximum output current of the IMD2AT108 is 150mA.
  • The IMD2AT108 has a built-in thermal shutdown protection that shuts down the device when the junction temperature exceeds 150°C. To handle this, ensure good thermal design and heat dissipation in your application.
  • The EN (Enable) pin is used to enable or disable the device. When the EN pin is set to a logic high, the device is enabled, and when it is set to a logic low, the device is disabled.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

IMD2AT108 Overview

Use the download button to access the IMD2AT108 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like IMD2A, or try a keyword search, such as Small Signal Bipolar Transistors
