IMDQ75R040M2HXTMA1 - Infineon

Description: N-Channel 750 V 45A (Tc) 182W (Tc) Surface Mount PG-HDSOP-22-1 , 182W (Tc) , 750 V , -55°C ~ 175°C

Download IMDQ75R040M2HXTMA1 Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this IMDQ75R040M2HXTMA1 model

Email notifications will be applied after download.

Send part feedback

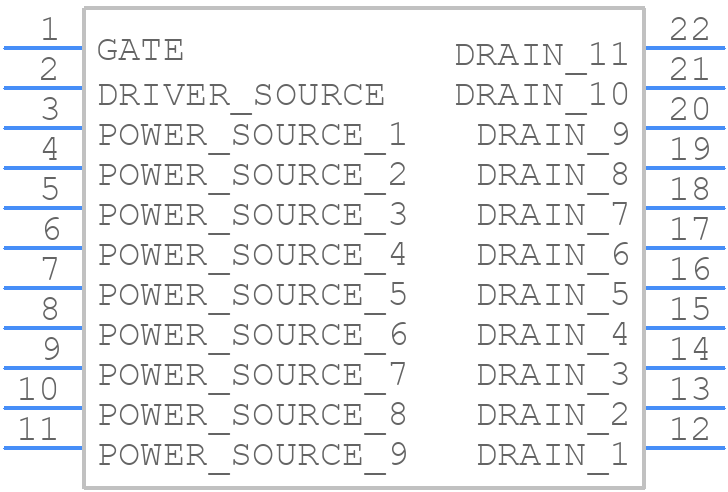

Symbol

IMDQ75R040M2HXTMA1 - Infineon - PCB symbol

PCB Footprints

IMDQ75R040M2HXTMA1 - Infineon PCB footprint - Other - Other - PG-HDSOP-22-1_2026

Datasheet Download Datasheet
Stock & Prices Price & Stock for IMDQ75R040M2HXTMA1
Part Number IMDQ75R040M2HXTMA1
Manufacturer Infineon
Pin Count 22
Part Category MOSFET (N-Channel)
Package Category Other
Footprint Name Other - PG-HDSOP-22-1_2026
Released Date May 3, 2026
Last Modified Date May 3, 2026 11:41 AM UTC
Pinout / Pin List Click Here (Member Only)

IMDQ75R040M2HXTMA1 Details
