XP Power recommends a PCB layout with a large copper area connected to the module's thermal pad to dissipate heat efficiently. A minimum of 2oz copper thickness is recommended, and the copper area should be connected to a heat sink or a metal plate for further heat dissipation.
Yes, the IMM0212D03 is designed to withstand vibrations up to 10G peak acceleration, making it suitable for use in high-vibration environments. However, it's essential to ensure proper mounting and screw torque to prevent damage or dislodging of the module.
To ensure EMC, XP Power recommends using a metal enclosure, keeping the module away from sensitive components, and using proper cable shielding and filtering. Additionally, the module's input and output cables should be kept as short as possible and routed away from each other.
The IMM0212D03 can tolerate input voltage deviations of up to ±10% of the nominal input voltage without affecting its performance or reliability. However, it's essential to ensure that the input voltage remains within the specified range to maintain the module's efficiency and lifespan.
The IMM0212D03 has a conformal coating that provides some protection against humidity and moisture. However, it's not designed for use in wet or submerged environments. If you need to use the module in a humid environment, ensure that it's properly sealed and protected from moisture ingress.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
IMM0212D03 Overview

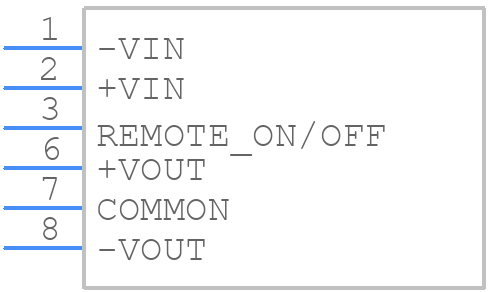

Use the download button to access the IMM0212D03 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like IMM02,
or try a keyword search, such as Power Supply Modules
