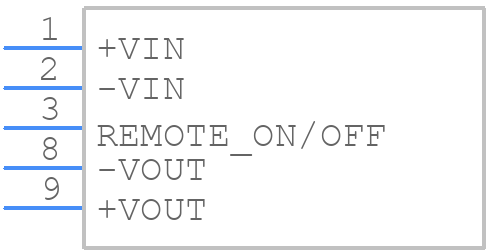

IMM0524S12 - XP POWER

IMM0524S12 Details

• Manufacturer Part Number:

  IMM0524S12

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

  SIP-9/5

• ECCN Code:

  EAR99

• Manufacturer:

  XP Power

• YTEOL:

  5

• Analog IC - Other Type:

  DC-DC REGULATED POWER SUPPLY MODULE

• Approvals:

  ANSI, CB, CE, CSA, EN, IEC, TUV, UKCA, UL

• Efficiency (Main Output):

  82%

• Input Voltage-Max:

  36 V

• Input Voltage-Min:

  18 V

• Input Voltage-Nom:

  24 V

• JESD-30 Code:

  R-PSIP-T5

• JESD-609 Code:

  e3

• Length:

  26 mm

• Line Regulation-Max:

  0.5%

• Load Regulation-Max:

  2%

• Number of Functions:

  1

• Number of Outputs:

  1

• Number of Terminals:

  5

• Operating Temperature-Max:

  100 °C

• Operating Temperature-Min:

  -20 °C

• Output Current-Max:

  0.416 A

• Output Voltage-Max:

  12.24 V

• Output Voltage-Min:

  11.76 V

• Output Voltage-Nom:

  12 V

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  SIP

• Package Equivalence Code:

  SIP5/9,.07

• Package Shape:

  RECTANGULAR

• Package Style:

  IN-LINE

• Protections:

  OVER LOAD; SHORT CIRCUIT

• Ripple Voltage (Main Out):

  0.02651 Vrms

• Screening Level:

  IEC/EN 60601-1, One MOPP

• Seated Height-Max:

  13 mm

• Surface Mount:

  NO

• Technology:

  HYBRID

• Terminal Finish:

  Matte Tin (Sn)

• Terminal Form:

  THROUGH-HOLE

• Terminal Pitch:

  2.54 mm

• Terminal Position:

  SINGLE

• Total Power Output-Max:

  5 W

• Trim/Adjustable Output:

  NO

• Width:

  9.3 mm
