IMP34DT05TR - STMicroelectronics

Description: MEMS MICROPHONE, –26 dBFS ±3 dB sensitivity, AOP = 122.5 dBSPL, -40 TO 85DEG C, HCLGA 4LD (3x4x1 mm)

Download IMP34DT05TR Model

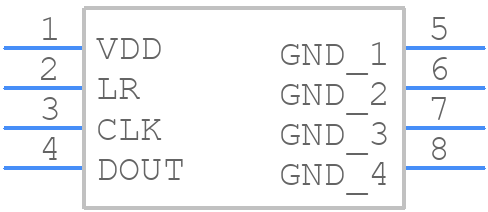

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
IMP34DT05TR - STMicroelectronics PCB footprint - Other - Other - HCLGA (3 x 4 x 1 mm) 4-lead
click to zoom
3D Models
IMP34DT05TR - STMicroelectronics  - 3D model - Other - HCLGA (3 x 4 x 1 mm) 4-lead
click to zoom

IMP34DT05TR Details

  • Manufacturer Part Number:

    IMP34DT05TR

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    End Of Life

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2018-08-06

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Additional Feature:

    TERM PITCH-MAX

  • Consumer IC Type:

    CONSUMER CIRCUIT

  • JESD-30 Code:

    R-CBGA-N5

  • JESD-609 Code:

    e4

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    5

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    CERAMIC, METAL-SEALED COFIRED

  • Package Code:

    HLGA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, HEAT SINK/SLUG

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    1.6 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    1.35 mm

  • Terminal Position:

    BOTTOM

  • Width:

    3 mm

IMP34DT05TR Frequently Asked Questions (FAQs)

  • A good PCB layout for the IMP34DT05TR involves keeping the input and output traces separate, using a solid ground plane, and minimizing the length of the input traces to reduce noise and parasitic inductance.
  • To ensure proper biasing, connect the VCC pin to a stable voltage source, and decouple it with a 10uF capacitor to ground. Also, ensure the input voltage is within the recommended range of 2.7V to 5.5V.
  • The maximum power dissipation of the IMP34DT05TR is 250mW. Ensure that the device is operated within this limit to prevent overheating and damage.
  • Use ESD protection devices such as TVS diodes or ESD arrays on the input lines, and consider adding overvoltage protection circuits to prevent damage from voltage spikes or surges.
  • The recommended operating temperature range for the IMP34DT05TR is -40°C to 85°C. Operating the device outside this range may affect its performance and reliability.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

IMP34DT05TR Overview

Use the download button to access the IMP34DT05TR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like IMP34, or try a keyword search, such as Other Consumer ICs
