IMZA120R007M1HXKSA1 - Infineon

Description: CoolSiC™ 1200 V SiC Trench MOSFET : Silicon Carbide MOSFET with .XT interconnection technology

Download IMZA120R007M1HXKSA1 Model

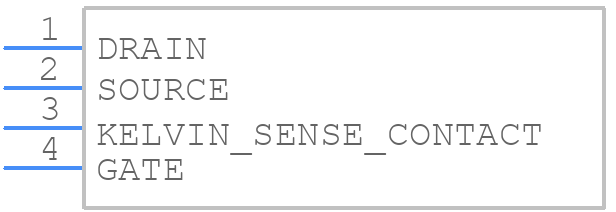

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
IMZA120R007M1HXKSA1 - Infineon PCB footprint - Other - Other - PG-TO247-4-STD-T3.7
click to zoom
3D Models
IMZA120R007M1HXKSA1 - Infineon  - 3D model - Other - PG-TO247-4-STD-T3.7
click to zoom

IMZA120R007M1HXKSA1 Details

  • Manufacturer Part Number:

    IMZA120R007M1HXKSA1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Austria, Mainland China, Malaysia

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    26 Weeks

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    5

  • Avalanche Energy Rating (Eas):

    638 mJ

  • Configuration:

    SINGLE WITH BUILT-IN DIODE AND KELVIN SENSOR

  • DS Breakdown Voltage-Min:

    1200 V

  • Drain Current-Max (ID):

    225 A

  • Drain-source On Resistance-Max:

    0.0111 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • Feedback Cap-Max (Crss):

    61 pF

  • JEDEC-95 Code:

    TO-247

  • JESD-30 Code:

    R-PSFM-T4

  • Number of Elements:

    1

  • Number of Terminals:

    4

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    175 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLANGE MOUNT

  • Polarity/Channel Type:

    N-CHANNEL

  • Power Dissipation-Max (Abs):

    750 W

  • Pulsed Drain Current-Max (IDM):

    504 A

  • Surface Mount:

    NO

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Position:

    SINGLE

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON CARBIDE

IMZA120R007M1HXKSA1 Frequently Asked Questions (FAQs)

  • Infineon recommends a 2-layer or 4-layer PCB with a thermal via array under the device to ensure optimal thermal performance. A minimum of 10 thermal vias with a diameter of 0.3 mm is recommended.
  • Infineon recommends using a reflow soldering process with a peak temperature of 260°C for 20-30 seconds. The device should be placed on a solder paste layer with a thickness of 0.1-0.2 mm.
  • The recommended operating voltage range for the IMZA120R007M1HXKSA1 is 12-14 V, with a maximum voltage of 15 V for short-term operation.
  • Infineon recommends using a fuse or a current limiter to protect the device from overcurrent. Additionally, a voltage clamp or a TVS diode can be used to protect the device from overvoltage.
  • The maximum junction temperature for the IMZA120R007M1HXKSA1 is 150°C. Operating the device above this temperature can reduce its lifespan and affect its performance.
