INA117KU/2K5G4 - Texas Instruments

Description: Differential Amplifiers High Common-Mode Voltage

Download INA117KU/2K5G4 Model

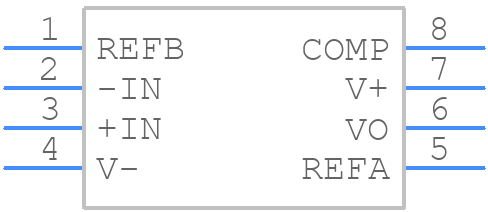

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
INA117KU/2K5G4 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - D0008A
click to zoom
3D Models
INA117KU/2K5G4 - Texas Instruments  - 3D model - Small Outline Packages - D0008A
click to zoom

INA117KU/2K5G4 Details

  • Manufacturer Part Number:

    INA117KU/2K5G4

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    GREEN, SOIC-8

  • Pin Count:

    8

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Bandwidth (3dB)-Nom:

    0.2 MHz

  • Common-mode Reject Ratio-Min:

    86 dB

  • Common-mode Reject Ratio-Nom:

    75 dB

  • Frequency Compensation:

    NO

  • Input Offset Voltage-Max:

    1000 µV

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    4.9 mm

  • Low-Bias:

    NO

  • Low-Offset:

    YES

  • Micropower:

    NO

  • Moisture Sensitivity Level:

    3

  • Neg Supply Voltage Limit-Max:

    -22 V

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Slew Rate-Min:

    2 V/us

  • Slew Rate-Nom:

    2.6 V/us

  • Subcategory:

    Operational Amplifier

  • Supply Current-Max:

    2 mA

  • Supply Voltage Limit-Max:

    22 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Unity Gain BW-Nom:

    200

  • Voltage Gain-Max:

    1

  • Voltage Gain-Min:

    1

  • Voltage Gain-Nom:

    1

  • Wideband:

    NO

  • Width:

    3.9 mm

INA117KU/2K5G4 Frequently Asked Questions (FAQs)

  • The maximum power dissipation of the INA117 is dependent on the ambient temperature and the thermal resistance of the package. According to the datasheet, the maximum power dissipation is 670mW at 25°C ambient temperature, but this can be derated to 500mW at 50°C and 330mW at 85°C.
  • To minimize noise and ensure accurate measurements, it is recommended to follow good PCB layout practices such as separating analog and digital grounds, using a solid ground plane, and keeping sensitive analog signals away from noisy digital signals. Additionally, the INA117 should be placed close to the signal source and the input signals should be routed directly to the INA117 inputs.
  • The recommended input impedance for the INA117 is 1kΩ to 10kΩ. This is because the INA117 has a high input impedance of 10GΩ, and a lower input impedance can help to reduce noise and improve common-mode rejection.
  • Yes, the INA117 can be used with a single supply voltage. However, the input common-mode voltage range is limited to VCC-2V to VCC+0.5V, so the input signals must be within this range to ensure accurate measurements.
  • The gain error of the INA117 can be calculated using the formula: Gain Error (%) = (Vout/Vin - Gain) x 100%. The gain of the INA117 is typically 5V/V, but this can vary depending on the specific device and operating conditions.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

INA117KU/2K5G4 Overview

Use the download button to access the INA117KU/2K5G4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like INA11, or try a keyword search, such as Operational Amplifiers

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.

Parts related to INA117KU/2K5G4

Showing 0 results

INA117KU/2K5G4 Alternates

Showing results

Image Part Number Model
Part Image INA117KU Texas Instruments

Operational Amplifier, 1 Func, 1000uV Offset-Max, 0.2MHz Band Width, BIPolar, PDSO8

Part Image INA117KU/2K5 Texas Instruments

Operational Amplifier, 1 Func, 1000uV Offset-Max, 0.2MHz Band Width, BIPolar, PDSO8

Part Image INA117KU Burr-Brown Corp

Operational Amplifier, 1 Func, 2000uV Offset-Max, 0.2MHz Band Width, BIPolar, PDSO8

Part Image INA117KUG4 Texas Instruments

Operational Amplifier, 1 Func, 1000uV Offset-Max, 0.2MHz Band Width, BIPolar, PDSO8

Part Image INA117KU/2K5 Burr-Brown Corp

Operational Amplifier, 1 Func, 2000uV Offset-Max, PDSO8

For a full list of alternate parts for INA117KU/2K5G4, check out Findchips.com
