INA132UA/2K5E4 - Texas Instruments

Description: SP Amp Difference Amplifier Single ±18V/36V 8-Pin SOIC T/R

Download INA132UA/2K5E4 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

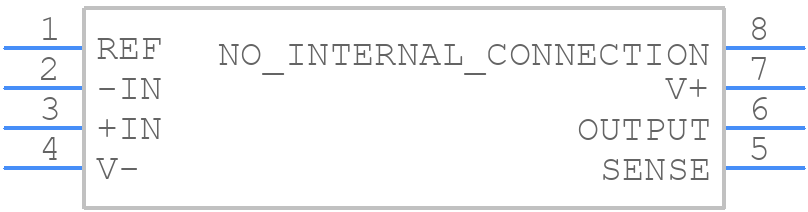

INA132UA/2K5E4 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
INA132UA/2K5E4 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - D0008A
click to zoom
3D Models
INA132UA/2K5E4 - Texas Instruments - 3D model - Small Outline Packages - D0008A
click to zoom

INA132UA/2K5E4 Details

  • Manufacturer Part Number:

    INA132UA/2K5E4

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    SO-8

  • Pin Count:

    8

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Additional Feature:

    IT CAN ALSO OPERATE WITH 2.7V TO 36V SINGLE SUPPLY

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    3

  • Neg Supply Voltage-Max (Vsup):

    -18 V

  • Neg Supply Voltage-Min (Vsup):

    -1.35 V

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max (Vsup):

    36 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    3.9 mm

INA132UA/2K5E4 Frequently Asked Questions (FAQs)

  • The maximum power dissipation of the INA132UA/2K5E4 is 670mW at 25°C, but it can be derated to 500mW at 85°C. It's essential to ensure the device operates within the specified power dissipation to prevent overheating and ensure reliability.
  • To minimize noise and ensure accurate measurements, it's crucial to follow proper PCB layout techniques. Keep the input traces as short as possible, use a ground plane, and separate the analog and digital sections of the board. Additionally, use shielding and guard rings around the input traces to reduce electromagnetic interference (EMI).
  • The recommended input impedance for the INA132UA/2K5E4 is 1kΩ to 10kΩ. This impedance range ensures optimal performance and minimizes the effects of input bias current and noise.
  • The INA132UA/2K5E4 is suitable for applications up to 50kHz. While it can operate at higher frequencies, its performance may degrade, and noise may become a significant issue. For high-frequency applications, consider using a more specialized instrumentation amplifier like the INA165 or INA186.
  • The gain error and offset voltage of the INA132UA/2K5E4 can be calculated using the formulas provided in the datasheet. The gain error is typically ±0.05% and the offset voltage is typically ±100μV. These values can be trimmed using external resistors or calibrated during production.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

INA132UA/2K5E4 Overview

Use the download button to access the INA132UA/2K5E4 schematic symbol, PCB footprint, and 3D model.
