IT CAN ALSO OPERATE WITH 2.7V TO 36V SINGLE SUPPLY
Analog IC - Other Type:
ANALOG CIRCUIT
JESD-30 Code:
R-PDSO-G8
JESD-609 Code:
e4
Length:
4.9 mm
Moisture Sensitivity Level:
3
Neg Supply Voltage-Max (Vsup):
-18 V
Neg Supply Voltage-Min (Vsup):
-1.35 V
Neg Supply Voltage-Nom (Vsup):
-15 V
Number of Channels:
1
Number of Functions:
1
Number of Terminals:
8
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Package Body Material:
PLASTIC/EPOXY
Package Code:
SOP
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
1.75 mm
Supply Voltage-Max (Vsup):
36 V
Supply Voltage-Min (Vsup):
2.7 V
Supply Voltage-Nom (Vsup):
15 V
Surface Mount:
YES
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
1.27 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
NOT SPECIFIED
Width:
3.9 mm
INA132UAE4 Frequently Asked Questions (FAQs)
The maximum voltage that can be applied to the input pins is ±40V, but it's recommended to keep it within the common-mode voltage range of ±25V to ensure accurate measurements.
The gain error can be calculated using the formula: Gain Error (%) = (Vout / (G x Vin)) x 100, where Vout is the output voltage, G is the gain, and Vin is the input voltage. The gain error is typically around ±0.1% for the INA132UAE4.
The REF pin is the reference voltage input for the INA132UAE4. It should be connected to a stable voltage source, typically the same as the power supply voltage, to ensure accurate measurements. A 0.1uF capacitor can be connected between the REF pin and GND to filter out noise.
The INA132UAE4 has a bandwidth of 1.5MHz, making it suitable for applications up to 100kHz. However, for higher frequency applications, it's recommended to use a more specialized instrumentation amplifier like the INA826 or INA827.
To minimize noise and interference, it's recommended to follow good PCB layout practices, such as keeping the input and output traces separate, using a ground plane, and placing the INA132UAE4 close to the input signal source. Additionally, use shielding and guard rings around the input pins to reduce electromagnetic interference.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
INA132UAE4 Overview

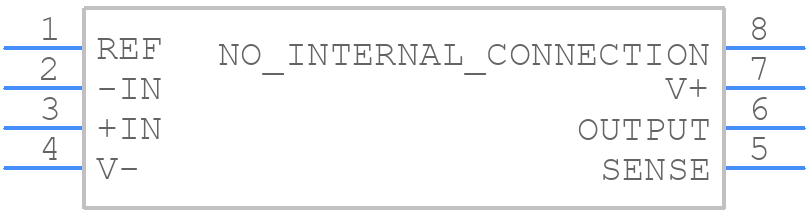

Use the download button to access the INA132UAE4 schematic symbol, PCB footprint, and 3D model.
