INA1620RTWR - Texas Instruments

Description: INA1620 High-Fidelity Audio Operational Amplifier With Integrated Thin-Film Resistors

Download INA1620RTWR Model

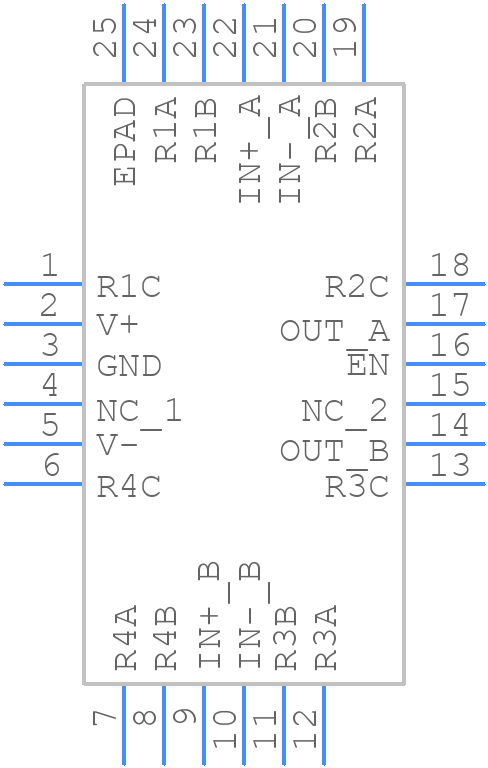

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
INA1620RTWR - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RTW (S-PWQFN-N24)
click to zoom
3D Models
INA1620RTWR - Texas Instruments  - 3D model - Quad Flat No-Lead - RTW (S-PWQFN-N24)
click to zoom

INA1620RTWR Details

  • Manufacturer Part Number:

    INA1620RTWR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Date Of Intro:

    2018-04-14

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    2.2 µA

  • Bias Current-Max (IIB) @25C:

    2 µA

  • Common-mode Reject Ratio-Min:

    108 dB

  • Common-mode Reject Ratio-Nom:

    127 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    1000 µV

  • JESD-30 Code:

    S-PQCC-N24

  • JESD-609 Code:

    e4

  • Length:

    4 mm

  • Low-Bias:

    NO

  • Low-Offset:

    NO

  • Micropower:

    NO

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage Limit-Max:

    -20 V

  • Neg Supply Voltage-Nom (Vsup):

    -5 V

  • Number of Functions:

    2

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Seated Height-Max:

    0.8 mm

  • Slew Rate-Nom:

    10 V/us

  • Supply Current-Max:

    6.6 mA

  • Supply Voltage Limit-Max:

    20 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Unity Gain BW-Nom:

    32000

  • Voltage Gain-Min:

    1000000

  • Wideband:

    NO

  • Width:

    4 mm

INA1620RTWR Frequently Asked Questions (FAQs)

  • A good PCB layout for the INA1620 involves keeping the input and output traces short and away from noise sources, using a solid ground plane, and placing the input and output capacitors close to the device. TI provides a recommended layout in the datasheet and application notes.
  • The gain resistor (Rg) value depends on the desired gain and the input signal amplitude. TI provides a gain resistor calculator tool and a gain equation in the datasheet to help with the selection. A good starting point is to choose a gain that sets the maximum output voltage swing to around 90% of the supply voltage.
  • The INA1620 can handle input voltages up to ±10V differential, but the absolute maximum rating is ±12V. Exceeding this limit can damage the device. It's essential to ensure that the input voltage stays within the recommended operating range.
  • To filter out noise and interference, use a low-pass filter (LPF) or a band-pass filter (BPF) at the input stage. You can also add a capacitor in series with the input signal to block DC voltage. Additionally, use shielding and grounding techniques to minimize electromagnetic interference (EMI).
  • The INA1620 has a typical quiescent current of 1.5mA. To reduce power consumption, consider using a lower supply voltage, reducing the gain, or using the shutdown pin to turn off the device when not in use. You can also use the low-power mode (LP) to reduce the quiescent current to around 0.5mA.
