The INA186A1IDDFR can handle input voltages up to 36V, but it's recommended to keep the input voltage below 30V for optimal performance and to prevent damage to the device.
The gain resistor (Rg) should be chosen based on the desired gain and the input voltage range. A smaller Rg value results in higher gain, but may also increase noise and offset voltage. A larger Rg value results in lower gain, but may also reduce noise and offset voltage. Consult the datasheet and application notes for guidance on selecting the optimal Rg value for your specific application.
The capacitor on the REF pin is used to filter out noise and ripple on the reference voltage. It helps to ensure a stable reference voltage, which is essential for accurate voltage measurements. A 10nF to 100nF capacitor is typically recommended.
To minimize noise and interference, use proper PCB layout techniques, such as separating analog and digital grounds, using a solid ground plane, and keeping sensitive analog signals away from noisy digital signals. Additionally, use shielding, filtering, and decoupling capacitors as needed to reduce electromagnetic interference (EMI) and radio-frequency interference (RFI).
The typical settling time for the INA186A1IDDFR is around 10-15 microseconds, depending on the gain setting and input voltage range. This settling time is the time it takes for the output voltage to stabilize after a step change in the input voltage.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
INA186A1IDDFR Overview

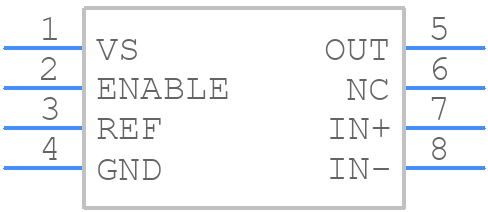

Use the download button to access the INA186A1IDDFR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like INA18,
or try a keyword search, such as Operational Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
