INA200AIDGKRG4 - Texas Instruments

Description: IC CURRENT MONITOR 3.5% 8VSSOP

Download INA200AIDGKRG4 Model

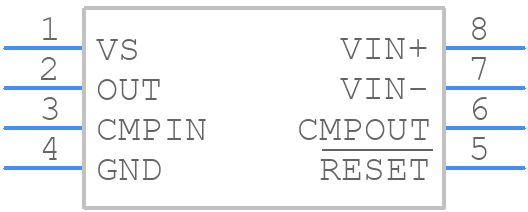

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
INA200AIDGKRG4 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DGK  (S-PDSO-G8)
click to zoom
3D Models
INA200AIDGKRG4 - Texas Instruments  - 3D model - Small Outline Packages - DGK  (S-PDSO-G8)
click to zoom

INA200AIDGKRG4 Details

  • Manufacturer Part Number:

    INA200AIDGKRG4

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    MSOP

  • Package Description:

    VSSOP-8

  • Pin Count:

    8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    16 µA

  • Bias Current-Max (IIB) @25C:

    0.01 µA

  • Common Mode Voltage-Max:

    80 V

  • Common-mode Reject Ratio-Min:

    100 dB

  • Common-mode Reject Ratio-Nom:

    123 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    2500 µV

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Low-Bias:

    NO

  • Low-Offset:

    NO

  • Micropower:

    NO

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Type:

    OPEN-DRAIN

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Qualification Status:

    Not Qualified

  • Response Time-Nom:

    1300 ns

  • Seated Height-Max:

    1.1 mm

  • Slew Rate-Nom:

    1 V/us

  • Supply Current-Max:

    1.85 mA

  • Supply Voltage Limit-Max:

    18 V

  • Supply Voltage-Nom (Vsup):

    12 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    NICKEL PALLADIUM GOLD SILVER

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Unity Gain BW-Nom:

    500

  • Voltage Gain-Nom:

    20

  • Wideband:

    NO

  • Width:

    3 mm

INA200AIDGKRG4 Frequently Asked Questions (FAQs)

  • The maximum voltage that can be applied to the input pins is ±40V, but it's recommended to keep it within ±20V for optimal performance and to prevent damage to the device.
  • To ensure accurate current measurements, make sure to use a sense resistor with a low temperature coefficient, keep the sense resistor close to the INA200, and use a low-noise power supply. Also, ensure that the input voltage is within the recommended range and that the device is operated within its specified temperature range.
  • The CAP pin is used to connect a capacitor to filter out high-frequency noise and improve the accuracy of the current measurement. A 10nF to 100nF capacitor is recommended, but the optimal value depends on the specific application and noise environment.
  • The INA200 is designed to measure DC currents, but it can be used to measure AC currents with some limitations. The device can measure AC currents up to 100 kHz, but the accuracy may degrade at higher frequencies. Additionally, the sense resistor should be chosen to minimize the voltage drop and ensure accurate measurements.
  • The power consumption of the INA200 can be calculated using the formula: Power (mW) = (VCC x ICC) + (VIN x IIN), where VCC is the supply voltage, ICC is the quiescent current, VIN is the input voltage, and IIN is the input current. The typical power consumption is around 1.5mW, but it depends on the specific application and operating conditions.
