INA202AIDGKT - Texas Instruments

Description: 80V, Low-/High-side, High-Speed, Voltage Output Current Sense Amp with Comparator

Download INA202AIDGKT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

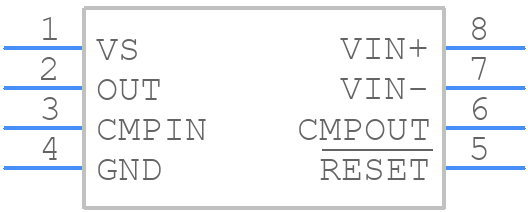

INA202AIDGKT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
INA202AIDGKT - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DGK (S-PDSO-G8)
click to zoom
3D Models
INA202AIDGKT - Texas Instruments - 3D model - Small Outline Packages - DGK (S-PDSO-G8)
click to zoom

INA202AIDGKT Details

  • Manufacturer Part Number:

    INA202AIDGKT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    MSOP

  • Pin Count:

    8

  • Country Of Origin:

    Mainland China, Malaysia, Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Average Bias Current-Max (IIB):

    16 µA

  • Common Mode Voltage-Max:

    80 V

  • Common-mode Reject Ratio-Min:

    100 dB

  • Input Offset Voltage-Max:

    2500 µV

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Type:

    OPEN-DRAIN

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Response Time-Nom:

    1300 ns

  • Seated Height-Max:

    1.1 mm

  • Slew Rate-Nom:

    1 V/us

  • Supply Current-Max:

    1.85 mA

  • Supply Voltage Limit-Max:

    18 V

  • Supply Voltage-Nom (Vsup):

    12 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Unity Gain BW-Nom:

    200

  • Voltage Gain-Nom:

    100

  • Width:

    3 mm

INA202AIDGKT Frequently Asked Questions (FAQs)

  • The INA202AIDGKT can handle input voltages up to ±650mV, but it's recommended to keep the input voltage within ±500mV to ensure accurate measurements.
  • The gain resistor (Rg) should be chosen based on the desired gain and the input voltage range. A smaller Rg value results in higher gain, but may also increase noise. A larger Rg value results in lower gain, but may also reduce noise. Consult the datasheet and application notes for guidance on selecting the optimal Rg value.
  • The REF pin is a reference voltage input that allows the INA202AIDGKT to provide a ratiometric output. Connect the REF pin to a stable voltage reference (e.g., a voltage regulator output) to ensure accurate measurements. The REF pin can also be used to offset the output voltage.
  • To minimize noise and interference, use proper PCB layout techniques, such as separating analog and digital grounds, using a solid ground plane, and placing bypass capacitors near the INA202AIDGKT. Additionally, use shielding and filtering to reduce electromagnetic interference (EMI).
  • The typical settling time of the INA202AIDGKT is around 10μs. This means that the output voltage may take up to 10μs to stabilize after a change in input voltage. Ensure that your application can accommodate this settling time to ensure accurate measurements.
