INA208AIPWR - Texas Instruments

Description: 80V, Low- or High-side, High-Speed, Voltage Out Current Shunt Monitor with Window Comparator & Ref

Download INA208AIPWR Model

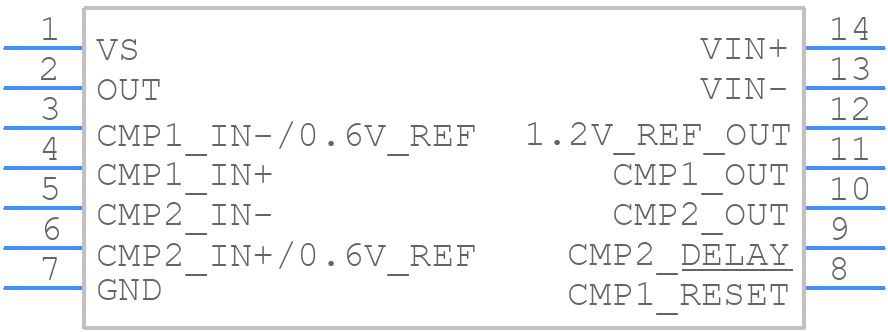

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
INA208AIPWR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - PW
click to zoom
3D Models
INA208AIPWR - Texas Instruments  - 3D model - Small Outline Packages - PW
click to zoom

INA208AIPWR Details

  • Manufacturer Part Number:

    INA208AIPWR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Pin Count:

    14

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    TRANSCONDUCTANCE

  • Average Bias Current-Max (IIB):

    16 µA

  • Bias Current-Max (IIB) @25C:

    0.01 µA

  • Common Mode Voltage-Max:

    80 V

  • Common-mode Reject Ratio-Min:

    100 dB

  • Common-mode Reject Ratio-Nom:

    100 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    2500 µV

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Low-Bias:

    NO

  • Low-Offset:

    NO

  • Micropower:

    NO

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    2

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Type:

    OPEN-DRAIN

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP14,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Qualification Status:

    Not Qualified

  • Response Time-Nom:

    1300 ns

  • Seated Height-Max:

    1.2 mm

  • Slew Rate-Nom:

    1 V/us

  • Supply Current-Max:

    2.8 mA

  • Supply Voltage Limit-Max:

    18 V

  • Supply Voltage-Nom (Vsup):

    12 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Unity Gain BW-Nom:

    200

  • Voltage Gain-Nom:

    100

  • Wideband:

    NO

  • Width:

    4.4 mm

INA208AIPWR Frequently Asked Questions (FAQs)

  • The maximum voltage that can be applied to the input pins of INA208AIPWR is ±25V, but it's recommended to keep it within ±20V to ensure accurate measurements and prevent damage to the device.
  • The gain of the INA208AIPWR can be calculated using the formula: Gain = (49.4kΩ / Rg) + 1, where Rg is the gain resistor value. The gain resistor value can be chosen based on the desired gain and input voltage range.
  • The REF pin on the INA208AIPWR is used to set the reference voltage for the output. It can be connected to a voltage reference or a resistive divider to set the output voltage range. The REF pin should be decoupled with a capacitor to ensure stability.
  • The INA208AIPWR is suitable for high-frequency applications up to 2.5MHz. However, the bandwidth and frequency response may be affected by the gain setting, input capacitance, and layout. It's recommended to evaluate the device's performance in the specific application and consider using filters or other signal conditioning techniques if necessary.
  • To ensure accurate measurements with the INA208AIPWR in noisy environments, it's recommended to use proper layout techniques, such as separating the analog and digital grounds, using shielding, and minimizing the length of the input traces. Additionally, consider using filters or other signal conditioning techniques to reject noise and interference.
