INA2132UAE4 - Texas Instruments

Description: Differential Amplifiers Dual Low Power Single-Supply

Download INA2132UAE4 Model
Schematic

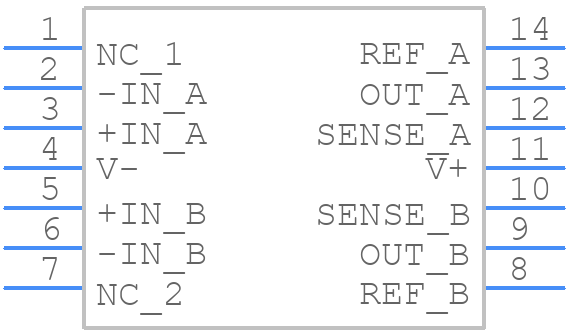

symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
INA2132UAE4 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - D(R-DPSO-G14)
click to zoom
3D Models
INA2132UAE4 - Texas Instruments  - 3D model - Small Outline Packages - D(R-DPSO-G14)
click to zoom

INA2132UAE4 Details

  • Manufacturer Part Number:

    INA2132UAE4

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    GREEN, SOIC-14

  • Pin Count:

    14

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Common-mode Reject Ratio-Min:

    76 dB

  • Common-mode Reject Ratio-Nom:

    90 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    250 µV

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e4

  • Length:

    8.65 mm

  • Low-Bias:

    NO

  • Low-Offset:

    YES

  • Micropower:

    YES

  • Moisture Sensitivity Level:

    3

  • Neg Supply Voltage Limit-Max:

    -18 V

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Number of Functions:

    2

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP14,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TUBE

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Slew Rate-Nom:

    0.1 V/us

  • Subcategory:

    Operational Amplifier

  • Supply Current-Max:

    0.185 mA

  • Supply Voltage Limit-Max:

    18 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Unity Gain BW-Nom:

    300

  • Voltage Gain-Max:

    1

  • Voltage Gain-Min:

    1

  • Voltage Gain-Nom:

    1

  • Wideband:

    NO

  • Width:

    3.9 mm

INA2132UAE4 Frequently Asked Questions (FAQs)

  • The maximum power dissipation of the INA2132UAE4 is dependent on the operating temperature and the thermal resistance of the package. According to the datasheet, the maximum power dissipation is 670mW at 25°C with a thermal resistance of 125°C/W. However, it's recommended to derate the power dissipation based on the operating temperature to ensure reliable operation.
  • To minimize noise and ensure accurate measurements, it's recommended to follow proper PCB layout practices. Keep the analog and digital grounds separate, use a solid ground plane, and keep the input and output traces short and away from noise sources. Additionally, use a low-ESR capacitor for decoupling and place it close to the device. It's also recommended to use a shielded cable for the input signal and to keep the cable length as short as possible.
  • The recommended input voltage range for the INA2132UAE4 is ±20mV to ±500mV. However, the device can handle input voltages up to ±1V, but with reduced accuracy and linearity. It's recommended to stay within the recommended input range for optimal performance.
  • The INA2132UAE4 does not require calibration, as it is a self-calibrating device. However, it's recommended to follow the recommended layout and decoupling practices to ensure optimal performance. Additionally, it's recommended to use a high-quality voltage reference and to keep the input signal clean and free from noise.
  • The typical settling time of the INA2132UAE4 is 10µs to 15µs, depending on the input signal and the output load. However, this can vary depending on the specific application and the output filter used. It's recommended to consult the datasheet and application notes for more information on settling time and output filtering.
